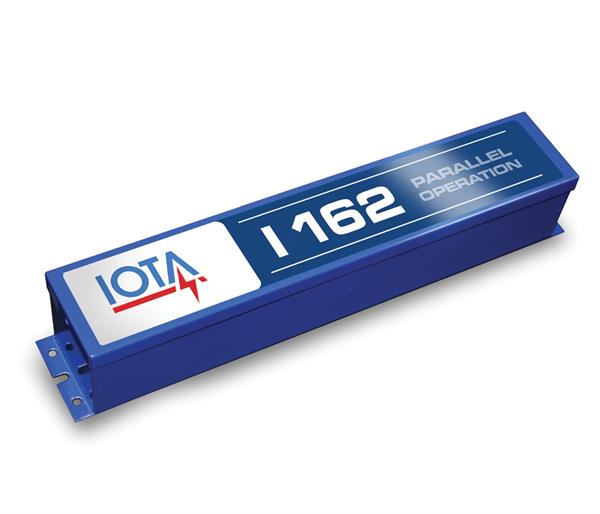

I162 Emergency Ballast

High Lumen, Parallel Operation Emergency Ballast for Linear and Compact LED Retrofit (TLED) and Fluorescent Luminaires

By IOTA

  • Overview
  • Specifications
The I162 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I162 switches to the emergency mode and operates two of the existing lamps in parallel for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can and is provided with 2 feet of 1/2'' flex for wiring to the fixture. The unit is designed for installation next to or on top of the fixture. The I162 utilizes AC output to ensure compatibility with new lamp technologies. The unit is compatible with all electronic or magnetic, series or parallel output, multi-lamp ballasts and is suitable for use in damp locations.
Initial Lumen Output
  • 3000 Lumens
Lamps Operated
  • (2) Select LED Retrofit Tubes
  • (2) 2-4ft T8, 12
  • (2) 28 or 54W T5
  • (2) 24W-50W Long Compact
Features
  • Parallel Lamp Operation
  • AC output for compatibility with Low-Mercury Content Amalgam lamps
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit isolation protects unit when load is absent
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Painted steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in damp locations and plenum fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing ROHS
Environmental Listing Damp Location
Series I162

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET I162 Specifications Specification Sheet for the IOTA I162 2/17/2020 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions I162 Manual Installation Manual for the I162 9/19/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram (DWG) Four Lamp Instant Start Ballast - Linear DWG Format - Connections to a four lamp (two emergency lamps) linear luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Three Lamp Instant Start Ballast - Compact DWG Format - Connections to a three lamp compact luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Three Lamp Instant Start Ballast - Linear DWG Format - Connections to a three lamp linear luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Three Lamp Rapid Start Ballast - Linear DWG Format - Connections to a three lamp linear luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp Emergency Operation Only - Linear DWG Format - Connections to a two lamp luminaire, emergency operation only (no AC ballast) 6/30/2020
    Wiring Diagram (DWG) Two Lamp Instant Start Ballast - Compact DWG Format - Connections to a two lamp compact luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp Instant Start Ballast - Linear DWG Format - Connections to a two lamp linear luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp Rapid Start Ballast - Compact DWG Format - Connections to a two lamp compact luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp Rapid Start Ballast - Linear DWG Format - Connections to a two lamp linear luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (PDF) Four Lamp Instant Start Ballast - Linear PDF Format - Connections to a four lamp (two emergency lamps) linear luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Three Lamp Instant Start Ballast - Compact PDF Format - Connections to a three lamp compact luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Three Lamp Instant Start Ballast - Linear PDF Format - Connections to a three lamp linear luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Three Lamp Rapid Start Ballast - Linear PDF Format - Connections to a three lamp linear luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Emergency Operation Only - Linear PDF Format - Connections to a two lamp luminaire, emergency operation only (no AC ballast) 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Instant Start Ballast - Compact PDF Format - Connections to a two lamp compact luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Instant Start Ballast - Linear PDF Format - Connections to a two lamp linear luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Rapid Start Ballast - Compact PDF Format - Connections to a two lamp compact luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp Rapid Start Ballast - Linear PDF Format - Connections to a two lamp linear luminaire with an rapid start ballast 6/30/2020 View
    Wiring Diagram Test Switch Placement - 2-Piece Test Kit Diagram for installing a 2-piece test switch and charge indicator 6/30/2020 View
