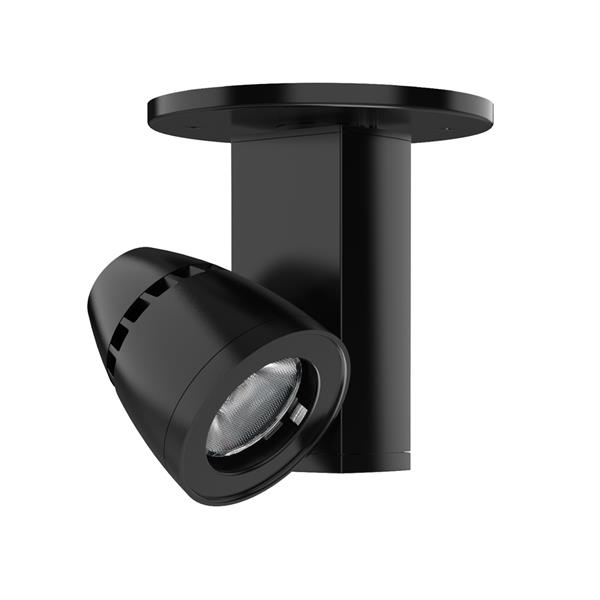

T261L CPY Canopy Mount Fixture

Trac-Master® Conix® II LED Trac Head with Direct Canopy Mount Option
    WarmDimBuy America(n) Option AvailableBuy America(n) Option Available
  • Caractéristiques
The sleek, sculpted aesthetic of the Juno® T261L Series Conix® II LED fixture with Canopy Mount option is unrivaled in the industry and offers a fresh, contemporary appeal. These fixtures feature integral TIR optics that offer uniform spot, narrow flood, flood, and wide flood distributions. They can deliver up to 1,132 lumens while consuming less than 1/3 of the energy of halogen equivalents. They are available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer 90+ CRI, rendering colors richly and making whites appear naturally brilliant. A WarmDim® option is also available (3000K-1800K, 90 CRI standard). These fixtures can be mounted on horizontal surfaces (ceilings) or vertical surfaces (walls) or any orientation in between. Ideally suited to help with energy code compliance, the CPY option also enables 120V, 277V, or 347V operation and enables phase or 0-10V dimming; 347V operation and 0-10V WarmDim operation requires deep canopy construction.
En savoir plus
Lire moins
Forme Not Applicable
Light Source LED - Dynamic, LED - Static
Composantes dynamiques Warm Dimming
Lumens 1000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 90 SpectralWhite
Type de produit Track Head
Certification environnementale Damp Location, Dry Location
Inscription réglementaire C-UL-US, cUL, UL
Protocole de gradation 0-10V, Electronic Low Voltage, Forward Phase, Incandescent, Magnetic Low Voltage, Reverse Phase
Color Black, White
Types de fixations Surface, Track/Monopoint
Tension 120-277, 347
Fixture Wattage 11, 16
Track Mounting Adapter CANOPY
Series T261L

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique D1_3_38B.pdf Juno Trac-Master® 11W Conix® II LED, T261L 10/9/2024 Voir
    Fiche technique T261LG3-DIM.pdf T261L G3 Dimmer Compatibility Sheet 9/8/2025 Voir

  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.

    1 - 1 de résultats

    Description rapport outils de conception
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Instructions d'installation deep canopy install instructions_rev 3.1 - French.pdf Installation Instructions for Deep Canopy Mounting Option - French 5/29/2024 Voir
    Instructions d'installation deep canopy install instructions_rev 3.1 - Spanish.pdf Installation Instructions for Deep Canopy Mounting Option - Spanish 5/29/2024 Voir
    Instructions d'installation deep canopy install instructions_rev 3.1.pdf Installation Instructions for Deep Canopy Mounting Option 5/8/2024 Voir
    Instructions d'installation slim canopy install instructions_rev 3.1 - French.pdf Installation Instructions for Slim Canopy Mounting Option - French 6/4/2024 Voir
    Instructions d'installation slim canopy install instructions_rev 3.1 - Spanish.pdf Installation Instructions for Slim Canopy Mounting Option - Spanish 6/4/2024 Voir
    Instructions d'installation slim canopy install instructions_rev 3.1.pdf Installation Instructions for Slim Canopy Mounting Option 5/8/2024 Voir
  • Utility Rebate Search

  • Pièces de rechange

  • Confidential Documents

  • Documents marketing (ex. brochures, fiches de vente, FAQ)

    Type de document Titre du document Description Actualisé Voir
    Fiche de vente JUN_Direct Canopy Mount Option Sell Sheet.pdf Juno Trac Direct Canopy Mount Option Sell Sheet 9/25/2024 Voir
