Contractor Select ELM4L Emergency Light

Quantum® LED Adjustable Optics 640 Lumens Emergency Light

By Lithonia Lighting

    CA Title 20
  • Overview
  • Specifications

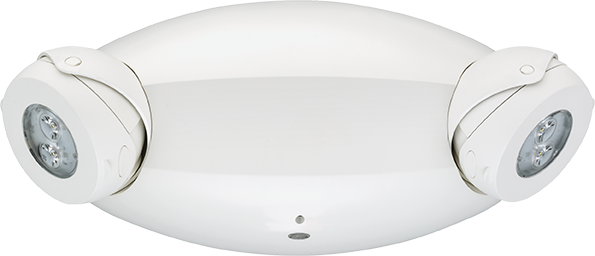

The ELM4L from Lithonia Lighting® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 minutes of illumination when there is a loss of power. Equipped with four high performance LEDs and full range swivel lamp heads it is ideal for a wide-range of mounting height applications (from 7.5' to 24'), requiring aim-able optics. The linear pattern provides wide uniform distributions that deliver broad spacing up to 67' and low max to min ratios that far exceed code requirements.


The ELM4L optional Lithium platform comes standard with universal input voltage (120-347 Volt). The upgraded Lithium Iron Phosphate battery provide extended run-times of up to 4 hours or up to 32 watts of remote capacity. Also, remote testing and self-diagnostics that meet and exceed code required testing while significantly reducing the time and cost of compliance. Plus, constant light output over the full discharge period.

Read More
Read Less
Light Source LED - Static
Lumens 640 LM
CCT / LED Color 5000 K
Product Type Emergency Lighting Unit
Compliance Listing CA Title 20
Environmental Listing Damp Location
Regulatory Listing C-UL-US, NFPA 101, NFPA 70, NOM, UL
Fixture Wattage 2.78, 3.05, 3.13, 3.15, 3.42, 4.54, 4.87, 5.87, 5.95
Voltage Rating 120-347
Color Black
Mounting Type Surface
Series ELM4L
Days To Ship 2 or Less

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Contractor Select ELM4L.pdf ELM4L Contractor Select LED emergency light 3/4/2020 View
    SPEC SHEET ELA-WG.pdf Wire guards 11/28/2022 View

    This tool will configure catalog # options that may not be a part of our quick shipment programs (Contractor Select, LightQuick, Design2Ship, etc.).
    Please see the specification sheet for the quick ship catalog # configurations.

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ELM4L NICAD STANDARD INSTALLATION INSTRUCTIONS 912-00027-003.pdf ELM4L Emergency Lighting Unit instruction sheet_Nicad (English/Spanish/French), Rev D 12/27/2021 View
    Installation Instructions ELM4L_ELM6L_INSTALLATION_INSTRUCTIONS_912-00027-001_Rev G.pdf ELM4L_ELM6L Emergency Lighting Unit instruction sheet (English/Spanish/French), Rev G 9/26/2022 View
    Material Safety Data Sheet SDS-Lithium-Iron-Phosphate_9.6V_6.0AH_3S2P.pdf SDS sheet for ELB 9P606LTP, Lithium Iron Phosphate_9.6V 6.0AH 3/16/2022 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Basics vs Quantum Infographic Basics vs Quantum Infographic 1/29/2020 View
    Brochures Life Safety Portfolio.pdf Life Safety Portfolio 10/6/2021 View
    White Paper Contractor Select Basics and Quantum Contractor Select Basics and Quantum 4/20/2021 View
