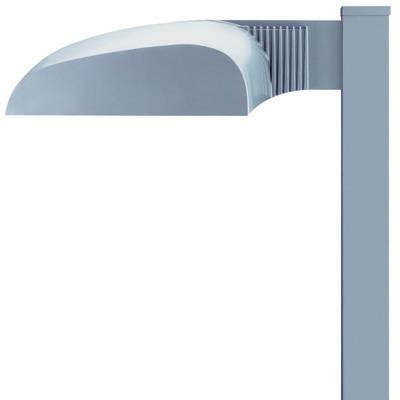

Ideal for parking areas, street lighting, walkways and car lots.
Construction
Rugged, die-cast, single-piece aluminum housing with nominal wall thickness of .012”. Die-cast door frame has impact-resistant, tempered, glass lens (3/16” thick). Door frame is fully gasketed with one-piece tubular silicone.
Finish: Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 3 mm thickness for a finish that can withstand extreme climate changes without cracking or peeling. Standard Super Durable colors include dark bronze, black, natural aluminum and white. Available in textured and non-textured finishes.
Optics
Precision acrylic refractive optics for optimum light distribution through the flat glass lens. Available with Type 2, Type 3, Type 4 and Type 5.
Electrical
High-efficiency nominal 4000K, 65 CRI LEDs mounted to a metal-core circuit board and aluminum heat sink, ensuring optimal thermal management and long life. Designed to provide more than 60,000 hours of performance (L85) at 250C (770F) ambient temperatures. Standard and dimming drivers are available in 120-277V and 347-480V; 50/60 Hz. Drivers have power factor >90% and THD <20%. Expected driver life is over 60,000 hours, matching the light engine life. Integral surge protection tested in accordance with IEEE/ANSI C62.41.2 to Category C Low.
Installation
Integral arm for pole or wall mounting.
Shape | Rectangular |
Light Source | LED - Static |
Lumens | 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM |
CCT / LED Color | 3000 K, 4000 K, 5000 K |
CRI | 70 |
Product Type | Area Light |
Compliance Listing | BAA |
Regulatory Listing | CSA |
Voltage Rating | 120, 120-277, 208, 240, 277, 347, 480, MVOLT |
Color | Black, Bronze, Silver, White |
Mounting Type | Pole Mount |
Series | AS1 |
Read More Read Less
Suggested Replacement Products
Spec Sheets
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
SPEC SHEET | Architectural die-cast, LED | Architectural die-cast, LED | 3/15/2021 | View |
|
|
Photometry & Revit (BIM)
Description | Report | Design Tools |
|
|
---|---|---|---|---|
{{photometryItem.Catalog}} | Report |
|
|
Spectral Data Sheets
Guideline Specifications
BIM Models (Revit)
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Accessories | OA-AL.pdf | Options and accessories-Area | 12/15/2016 | View |
|
|
Installation Instructions | INST SHT SPA19_RPA19 | Installation Instructions to adapt DM19 drill pattern #5 to DM19AS drill pattern #8 | 12/15/2016 | View |
|
|
Installation Instructions | INST SHT WBA 2018 RJ521505 REV D.pdf | Installation Instructions for wall bracket (WBA) | 8/8/2022 | View |
|
|
Installation Instructions | Instruction Sheet AS1 LED | Installation Instructions AS1-LED | 12/15/2016 | View |
|
|
Templates | TD-drill--8 | Aeris pole drill template #8 | 11/20/2019 | View |
|
|
Templates | TD-drill--9 | Aeris wall drill template #9 | 1/7/2019 | View |
|
|
