Preloaded apps ECLYPSE

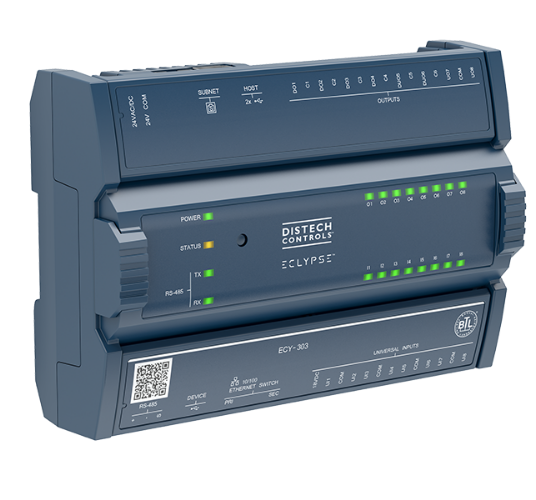

ECLYPSE Connected Equipment Controllers – ECY-303 Series

By Distech Controls

  • Overview
  • Specifications

Designed to control rooftop units and small air handling units, as well as heat pumps, fan coils and chilled beam applications, features a diversified I/O count in a compact design and footprint for easy in-cabinet installation.

  • All-in-one controller, combining power supply, server, and a diversified I/O count
    • 8 universal inputs
    • 4 x 24VAC triac digital outputs
    • 2 universal outputs
    • 2 field configurable outputs (24VAC triac digital or universal)
  • Configure pre-loaded applications with embedded ENVYSION or with an Allure™ EC-Smart-Vue communicating sensor, or fully customize with EC-gfxProgram
  • Integrated fail-safe feature allowing for increased redundancy and reliability in your IP-wired daisy chain: in case of power failure to one controller, communication data is still relayed to the following controller on the daisy-chain
  • Operating temperature range suited for installation in outdoor equipment
  • Supports the Smart Room Control solution, for a unified, end-to-end solution for the control of HVAC, lighting, and shades/sunblind
  • Select models support up to 3 Modbus RTU and TCP/IP devices to cost effectively integrate meters, VFDs etc
  • Supports "direct connection" to EC-gfxProgram, graphical programming interface, and mobile apps
  • With embedded ENVYSION, web-based graphic design and visualization interface, for hosting of system-based graphics, and visualization of schedules, alarms, and trend logs directly from the controller
  • Daisy-chain up to 4 Allure series communicating sensors via the dedicated subnet port
Read More
Read Less
Brand Distech Controls
Product Type System and Equipment Control Solution
Subcategory ECLYPSE
Sales Regions US, OC, ME, EU, CSA, CA, AS

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ECLYPSE Connected Equipment Controllers (ECY-303) Spec Sheet Designed to control rooftop units and small air handling units, as well as heat pumps, fan coils and chilled beam applications 6/13/2019 View
