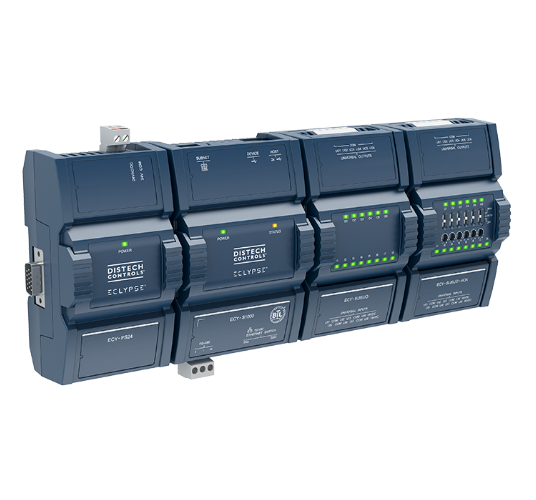

ECLYPSE Connected System Controller - ECY-CSC Series

By Distech Controls

  • Overview
  • Specifications

Ideal for central plant and mechanical equipment control, it is modular and scalable, to effectively address any HVAC application, up to 320 points.

  • Customize your ECLYPSE Connected System Controller, by selecting from:
    • 2 power supplies
    • 3 control, automation and connectivity servers
    • 12 I/O modules - can be combined together for up to 20 modules and 320 points
    • Module with additional RS-485 ports (for up to a total of 3) to enable the concurrent support and integration of BACnet MS/TP and Modbus RTU devices
  • M-Bus Module that will support the integration of M-Bus devices
  • In daisy-chain wired IP, supports STP loop-free topology configuration
  • Proven high-performance and power efficient single core-processor, providing scalable speed (above 1GHZ) for accelerated reading and control of points, and enhanced trending capabilities
  • Enables BACnet MS/TP to IP routing and Modbus RTU integration
    • Cost effectively connect meters, VFDs and other Modbus devices without additional gateways
    • Route BACnet MS/TP devices to BACnet/IP
  • Daisy-chain up to 12 Allure™ series communicating sensors via the dedicated subnet port
  • Supports Smart Room Control solution, for a unified, end-to-end solution for the control of HVAC, lighting, and shades/sunblind
  • "Direct connection" to EC-gfxProgram, graphical programming interface, and mobile apps
  • Available with embedded ENVYSION, web-based graphic design and visualization interface, for hosting of system-based graphics, and visualization of schedules, alarms, and trend logs directly from the controller
  • Auto-addressing eliminates the need to manually assign an address to each I/O module reducing installation and configuration time
  • All modules are plug & play devices, equipped with HD-15 connectors transmitting power and commu-nications, for fast and easy as¬sembly
  • Hot-swappable tool-less design and unique latching mechanism
Read More
Read Less
Brand Distech Controls
Product Type System and Equipment Control Solution
Subcategory ECLYPSE
Sales Regions US, OC, ME, EU, CSA, CA, AS
