Txx-ASTxx

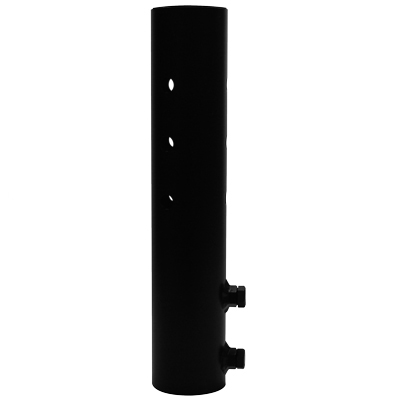

Drill Mount Tenon Adaptor

By Lithonia Lighting

  • Overview
  • Specifications

Durable brackets are engineered to allow a variety of mounting options for a variety of light fixtures. This pole mounted tenon reducer provides the right size tenon to ensure the light fixture has the proper fit. These tenons are made from 6061 alloy schedule 40 pipe and heat-treated to a T6 temper after welding. They can be provided natural, primed, painted, or anodized.

Check out POLESCENTRAL for additional resources and solutions.


To be mounted to steel, aluminum, fiberglass or concrete poles with a T20, T25, or T35 tenon providing a variety of side drill mount options for any Acuity Brands Lighting fixture.

Read More
Read Less
Shape Round
Light Source Not Applicable
Lumens Not Applicable
Product Type Adaptor
Voltage Rating Not Applicable
Color Beige, Black, Blue, Bronze, Brown, Gray, Green, Purple, Red, Silver, White, Yellow
Mounting Type Pole Mount, Post Top, Tenon Slipfitter
Series T35-390, T35-490, AST35-390, AST20-320, AST20-490, AST25-390, AST20-190, AST20-280, AST20-290, AST20-390, AST25-190, AST25-280, AST25-290, AST35-190, AST35-280, T20-190, T20-280, T20-290, T20-320, T20-390, T20-490, T25-190, T25-280, T25-290, T25-320, T25-390, T25-490, T35-190, T35-280, T35-290, AST25-490, AST35-290, AST35-320, AST25-320

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Drill-Mount Tenon Slipfitter - Poles with Tenons Drill-Mount Tenon Slipfitter - Poles with Tenons 12/13/2021 View
