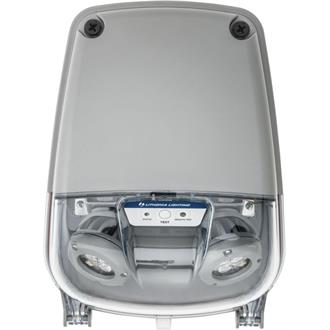

EXTL Industrial Emergency Light
- Overview
- Specifications
The Extreme® EXTL is NEMA 4X, IP66 and NSF rated providing protection in hose-down or harsh environments where moisture, dirt and dust would limit the life of ordinary emergency lighting.
The Extreme® EXTL comes standard with Quick-mounting brackets for ease of installation and provides great spacing at higher mounting heights. The upgraded lithium iron phosphate batteries provide extended run-times and remote capacity. The remote testing and self-diagnostics feature meets and exceeds code required testing while significantly reducing the time and cost of compliance. The EXTL provides a minimum of 90-minutes of illumination upon loss of AC power with constant light output over the full discharge period.
- STAR Self-Testing Automated Reporting option
Light Source | LED - Static |
Lumens | 640 LM, 1100 LM, 2200 LM |
CCT / LED Color | 5000 K |
Product Type | Emergency Lighting Unit |
Compliance Listing | BAA |
Environmental Listing | IP66, NEMA 4X, NSF, Wet Location |
Regulatory Listing | C-UL-US, NFPA 101, NFPA 70, NOM, UL |
Fixture Wattage | 15.2, 23.6, 27.7, 3.84, 6.62, 7.65 |
Voltage Rating | 120-347 |
Color | Gray |
Mounting Type | Surface |
Series | EXTL |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET INDL_EXTL.pdf Indura® Damp Location Industrial, and Extreme® NEMA 4X Industrial, LED emergency light 4/12/2022 View
Need to Create a Submittal Spec Sheet? Take Me There
-
Photometry & Revit (BIM)
Use %(percent) to separate search terms.Description Report Design Tools {{photometryItem.Catalog}} Report CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Installation Instructions 912-00070-001_RevA.pdf RTKIT (Remote Tester Kit) instruction sheet (Rev A) 10/24/2018 View Installation Instructions EXTL INSTALLATION INSTRUCTIONS 912-00032-001_Rev J.pdf EXTL Extreme installation instruction sheet (Rev J) (English/French/Spanish) 1/31/2022 View Material Safety Data Sheet ChangHong Grand-Pro Tech Co.,Ltd., SDS-12.8V-6000mAh-4S2P.pdf SDS sheet for battery ELB 12P806LTPCW & ELB 12P806LTPCWH, 12.8V, 6.0Ah (EHO, EHO CW) 3/16/2022 View Material Safety Data Sheet ChangHong Grand-Pro Tech Co.,Ltd., SDS-9.6V-3000mAh-3S1P.pdf SDS sheet for battery ELB 9P63LTPCW & ELB 9P63LTPCWH, 9.6V, 3.0Ah(STD and STD CW battery types) 3/16/2022 View Material Safety Data Sheet SDS-Lithium-Iron-Phosphate_9.6V-6000mAh-3S2P.pdf SDS sheet for battery ELB 9P606LTPCW & ELB 9P606LTPCWH, 9.6V 6.0AH, (HO, HO CW) 3/16/2022 View -
