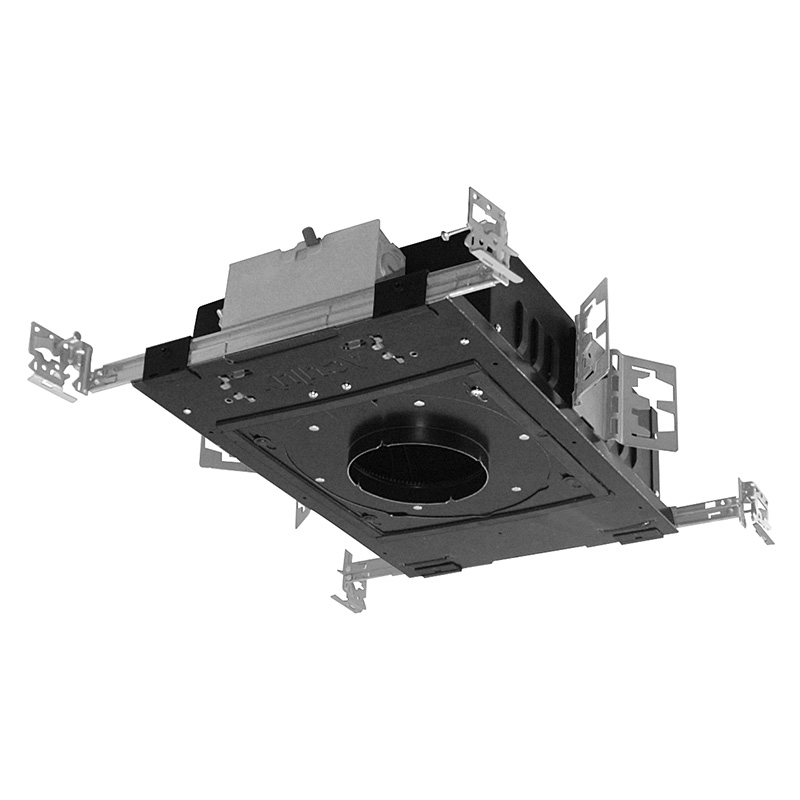

AX3 LPWW Low Profile Wall Wash Housing

Aculux® LED 3in Round New Construction Low Profile Wall Wash Housing

By Aculux

    CA Title 24/JA8Buy America(n)
  • Overview
  • Specifications
Aculux® 3-inch Low Profile Wall Wash luminaire is less than 4 inches tall and is available in five lumen packages ranging from 800 to 2500 delivered lumens while consuming only 7-26 watts. The luminaires are perfect for applications with limited space above the ceiling. These recessed luminaires are compatible with wall wash trims. They feature field interchangeable optics in 10 distributions, capable of delivering up to 25,800 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
Read More
Read Less
Size 3 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, JA8
Environmental Listing Damp Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 32.9, 33.3, 7, 7.6
Voltage Rating 120, 277, MVOLT
Trim Style Single Wallwash
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET AX3 G4 3FWW.pdf AX3/3FWW - 3" LED New Construction, Lensed Wall Wash 4/15/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P2886.pdf FMA3 Flangeless Adapter for Gypsum Ceiling Thickness = .875" View
    Installation Instructions P2908.pdf CTA3 Round Flanged Adapter for Ceiling Thickness 7/8" to 2" View
    Installation Instructions P3647.pdf SFM3 Round Flangeless Adapter for Wood, Stone and Tile Ceiling Thickness 1/2" to 1 5/8" View
    Installation Instructions P4482.pdf FMA3 Round Flangeless Adapter for Gypsum Ceiling Thickness 7/8" to 1 5/8" View
    Installation Instructions P4535.pdf AX3 and AX3SQ Series 3" Recessed New Construction Housing 8/25/2021 View
    Installation Instructions P6160.pdf AX3 and AX3SQ Series DMX512 and RDM Field Installable Driver View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Aculux 3-inch Precision Recessed LED Brochure_0318.pdf Aculux 3 inch Generation 4 Brochure View
