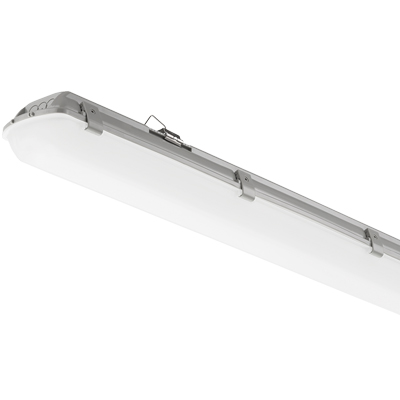

XVML LED Linear

Vapor-Tight LED Fixture Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

The standard product has been discontinued, please see the suggested products below or contact your local sales representative.


Experience the savings. Feel the value. The XVML LED vapor-tights from Lithonia Lighting® provide a cost-efficient enclosed-and-gasketed fixture designed specifically for demanding environments. The XVML LED vapor-tight is an easy-to-install, low-cost solution for wet locations and stands up to dust and dirt with its IP66 rating.


  • 3500 & 5000 Lumens packages
  • Available in 40K & 50K
  • Multiple mounting options
  • Easy-to-install, tool-less access
  • DLC Qualified Product
  • Wet-Location Listed, IP66 Rated

    • UL/C-UL listed to US and Canadian Safety Standards. For use in wet locations under covered ceilings. For use in ambient temperatures from -4°F (-20°C) to 104°F (40°C). IP65 and IP66 rated. Junction Box mount rated IP65. This unit meets FCC Non-Consumer Class A (277v) and Consumer Class B (120V) limits.

    Read More
    Read Less
    Size 4FT
    Shape Rectangular
    Light Source LED - Static
    Lumens 3500 LM, 5000 LM
    CCT / LED Color 4000 K, 5000 K
    CRI 80
    Product Type Linear
    Environmental Listing IP65, IP66, Wet Location
    Regulatory Listing cUL, UL
    Dimming Protocol 0-10V
    Fixture Wattage 33, 49
    Voltage Rating 120-277
    Color Gray
    Mounting Type Surface
    Series XVML

    Read More Read Less

    PRODUCT INFORMATION

    • Spec Sheets

      Document Type Document Title Description Updated View
      SPEC SHEET XVML.pdf (Discontinued) LED Vapor Tight 10/19/2020 View

    • Photometry & Revit (BIM)

    • Spectral Data Sheets

    • Guideline Specifications

    • Revit Component Files (Non-Illuminated)

    • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

      Document Type Document Title Description Updated View
      Installation Instructions U219952T_Rev_C XVML Inst Sheet 072618.pdf (Discontinued) Instalation Instruction sheet View
      Installation Instructions XVML Angled Mounting Bracket Inst Sheet.pdf (Discontinued) Instruction sheet View
      Installation Instructions XVMLJSB inst sheet.pdf (Discontinued) Instruction sheet View
