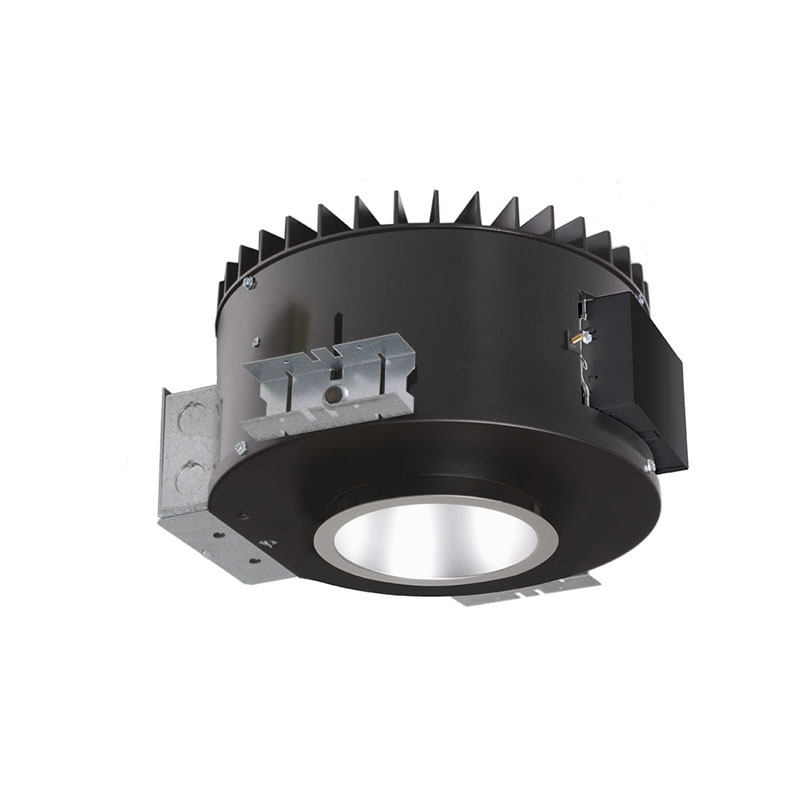

Product Image

SD4 BBD Housing

LED 4in Round Designer Series WarmDim® Housing Discontinued

By Indy

    WarmDimBuy America(n) Option Available
  • Overview
  • Specifications

This product webpage has been discontinued, please contact your sales local representative.

Indy™ Designer Series, SD4 BBD LED, 4-inch round downlights and wall washers with WarmDim® technology duplicate halogen dimming, offering a soft, natural warm glow as light levels are reduced, while using just one fourth the energy. Light output is comparable to 26W, 32W, 42W & 2x26W CFLs while consuming 11-34 watts. Color temperature warms from 2700K to 1800K when dimmed, while staying on the Black Body Locus throughout the entire dimming range. A standard 0-10V or triac dimmer is all it takes to interact with this extraordinary technology. All are rated for 50,000 hours at 70% lumen maintenance.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Dynamic
Lumens 800 LM, 1200 LM, 2000 LM, 3000 LM
CCT / LED Color Variable
CRI 90
Product Type Housing
Compliance Listing BAA, Chicago Plenum, ROHS
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Triac
Fixture Wattage 11, 14, 15, 18, 23.5, 23.7, 26, 26.2, 26.5, 26.7, 29, 29.2, 34, 35.4, 35.7, 37, 38.4, 38.7, 39.2, 42.2
Voltage Rating 120, 277, 347
Mounting Type Recessed
Series SD4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET K13_1_20.pdf SD4 Series - Black Body Dimming LED Round Downlight; Open Aperture 9/2/2020 View
    SPEC SHEET K13_1_23.pdf SD4 Series - Black Body Dimming LED Round Architectural Wall Wash; Open Aperture View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 065-740.pdf Recessed Fixtures - 1-1/2" Tru Lock 12/5/2019 View
