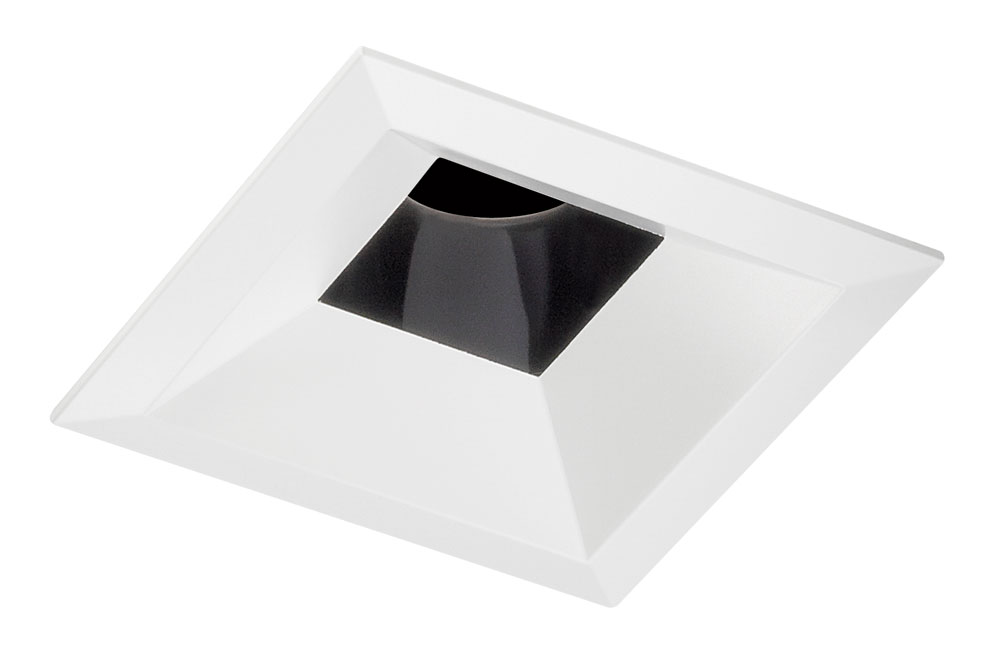

AX3SQ 3" Square Adjustable

3" Precision Recessed New Construction
    WarmDimTunable WhiteEnergy Star®CA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 3 IN
Shape Square
Light Source Halogen, LED - Dynamic, LED - Static
Lumens 600 LM, 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 95
Product Type Housing
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Control Platform nLight Wired
Dimming Protocol 0-10V, DALI, DMX, Forward Phase, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 32.9, 33.3, 7, 7.6
Voltage Rating 120, 120-277, 277
Trim Style Angle-Cut, Bevel, Lensed, Pinhole, Reflector
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX3SQ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Aculux-AX3SQ-Recessed-3in-Square-Adjustable.pdf AX3SQ Square Adjustable New Construction 7/7/2025 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P2886.pdf AX3 and AX3SQ Flangeless Adapter for Gypsum Ceiling Thickness less than .875" (FMA3/087,FMA3SQ/087) 9/11/2018 View
    Installation Instructions P2909.pdf AX3SQ 3" Square Ceiling Thickness Adapter .875" to 1.625" (CTA3/125,CTA3/163) 9/11/2018 View
    Installation Instructions P3646.pdf AX3SQ 3" Square Flangeless Adapter for Wood, Stone & Tile Ceiling Thickness .875" to 1.625" (SFM3SQ) 9/11/2018 View
    Installation Instructions P4484.pdf AX3SQ 3" Square Flangeless Adapter for Gypsum Ceiling Thickness .875" to 1.625" (FMA3SQ) 9/11/2018 View
    Installation Instructions P4535.pdf AX3 and AX3SQ 3" New Construction Housing 2/9/2023 View
    Installation Instructions P6160.pdf AX3 and AX3SQ 3" DMX512/RDM Field Installation 6/5/2018 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Aculux 3-inch Precision Recessed LED Brochure_0318.pdf Aculux AX3 Brochure 7/3/2025 View
    Brochures ACX_5D Precision Spot Flyer.pdf Aculux 5 degree Precision Spot Flyer 7/12/2024 View
    Brochures ACX_AX3 & AX4 WD TW Brochure__WEB.pdf Aculux WarmDim® & Tunable White Brochure 10/4/2024 View
