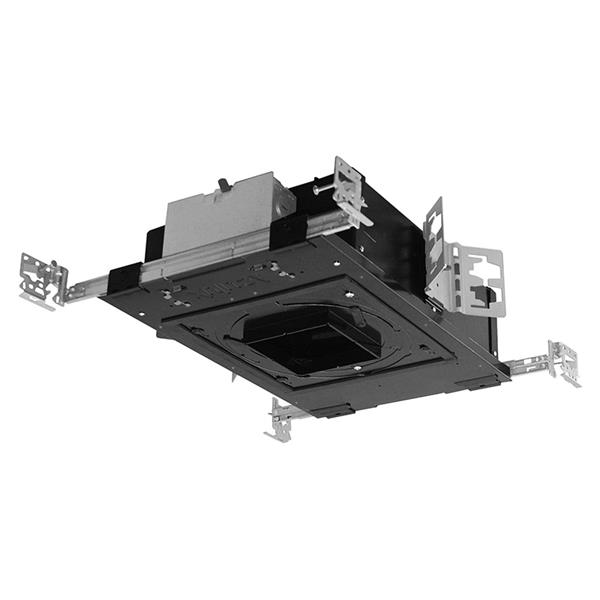

AX3SQ LPA Low Profile Housing

Aculux® LED 3in Square New Construction Low Profile Adjustable Housing

By Aculux

    Energy Star®  CA Title 24/JA8  Buy America(n)
  • Overview
  • Specifications
Aculux® 3" Low Profile luminaire is less than 4 inches tall and is available in five lumen packages ranging from 800-2500 delivered lumens while consuming only 7-26 watts. The luminaires are perfect for applications with limited space above the ceiling. These universal recessed luminaires are compatible with downlighting, adjustable accent, or wall wash trims. They feature field interchangeable optics in 10 distributions, capable of delivering up to 25,800 CBCP. Acu-Aim™ precision geared aiming provides 370 deg. rotation and 45 deg. tilt. The optimized center-beam optics results in quiet apertures while maximizing fixture efficiency.
Read More
Read Less
Size 3 IN
Shape Square
Light Source LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DMX, Forward Phase, Forward Phase 2W, Forward Phase 3W, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 7, 7.6
Voltage Rating 120, 277, MVOLT
Mounting Type Recessed
Series AX3SQ

Read More Read Less
