Aculux 2 Inch Gen 2 Video

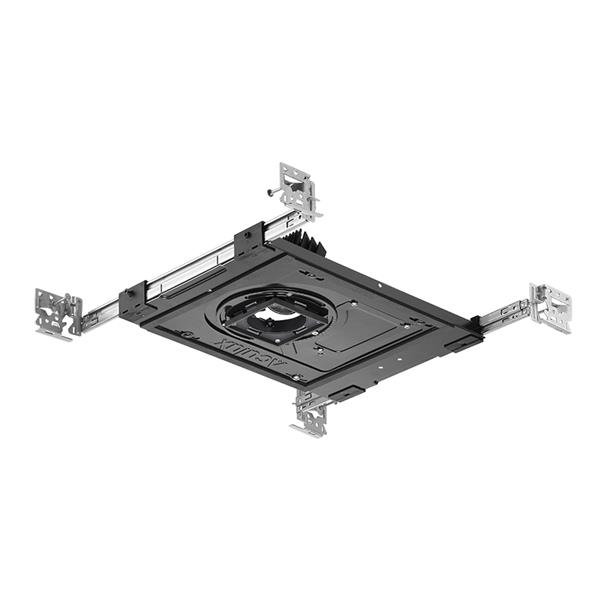

AX2SQ D New Construction Housing

Aculux® LED 2in Square New Construction Housing

By Aculux

    Energy Star®Buy America(n) Option Available
  • Overview
  • Specifications
Aculux® 2-inch LED precision downlight and wall wash luminaire is discreet and aesthetically stunning, delivering up to 1,500 lumens of high precision downlighting. Its state-of-the-art LED technology offers superb color consistency within 2 step MacAdam ellipse. These luminaires perform as well as or better than conventional recessed fixtures two or three times their size. The efficient optical system provides superior beam control. Precision installation platform facilitates perfect fixture to fixture alignment.
Read More
Read Less
Size 2 IN
Shape Square
Light Source LED - Static
Lumens 800 LM, 1200 LM, 1500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Housing
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 10, 14.3, 14.7, 16.5, 17.3, 9.9
Voltage Rating 120, 120-277
Trim Style Bevel, Lensed, Open, Pinhole
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX2SQ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET AX2SQ D G2 2SQD.pdf Aculux AX2SQ D / AX2SQ A Series, 2SQD Downlight Reflector 10/21/2022 View
    SPEC SHEET AX2SQ D G2 2SQDBV.pdf Aculux AX2SQ D / AX2SQ A Series, 2SQDBV Downlight Bevel 10/21/2022 View
    SPEC SHEET AX2SQ D G2 2SQDPIN.pdf Aculux AX2SQ D / AX2SQ A Series, 2SQDPIN Downlight Pinhole 10/21/2022 View
    SPEC SHEET AX2SQ D G2.pdf Aculux AX2SQ D Series, 2" LED Square New Construction Downlight - Complete Specification Sheet 10/21/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility ACLXLED2-DIM.pdf AX2 and AX2SQ Series, Dimmer Compatibility View
    Installation Instructions P3704.pdf AX2(SQ) New Construction Flangeless Adapter Ceiling Thickness less than .75" (FMA2/075,FMA2SQ/075) View
    Installation Instructions P3707.pdf AX2 and AX2SQ 2" IC New Construction Housing View
    Installation Instructions P3708.pdf AX2 and AX2SQ 2" Non-IC New Construction Housing View
    Installation Instructions P3739.pdf AX2SQ 2" Square Adapter Ceiling Thickness .75" to 1.50" (CTA2SQ/120,CTA2SQ/150) View
    Installation Instructions P4691.pdf AX2SQ 2" New Construction Flangeless Adapter Ceiling Thickness .75" to 1.50" (FMA2SQ/120,FMA2SQ/150) View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Aculux 2in Precision Recessed LED Brochure Aculux 2 Inch LED Gen 2 Brochure View
