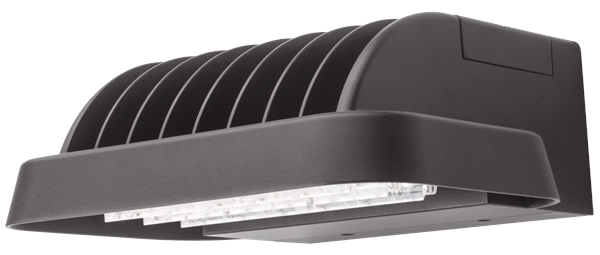

KAXW Wallpack

Wall Luminaire LED Outdoor

By Lithonia Lighting

    DLC Standard / Premium
  • Overview
  • Specifications
The KAX LED family from Lithonia Lighting was designed with you in mind. The KAXW LED wallpack comes standard with a simple-to-use mounting plate and an easy-access panel on the bottom of the luminaire to make wiring connections, which makes for simple installation whether for a new construction or retrofit application. The optics are specifically designed to maximize light in the desired area making it the smart choice for building-mounted doorway and pathway illumination on nearly any type of facility.

The KAXW LED wallpack delivers up to 9,800 lumens which makes it ideal to replace up to 400W metal halide wallpacks.

Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Wallpack
Compliance Listing DLC Standard, Nighttime Friendly
Environmental Listing IP66
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 29, 49, 79
Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
Color Black, Bronze, Silver, White
Mounting Type Surface
Series KAXW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET KAXW-LED.pdf LED Wall luminaire 6/22/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions KAXW-LED Accessories Installation Instructions KAXW-LED Accessories Installation Instructions View
    Installation Instructions KAXW-LED Installation Instructions KAXW-LED Installation Instructions View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet KAXW Replacement and Repair Kits.pdf KAXW Replacement and Repair Kitsr 4/12/2022 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures KAX LED Family Brochure.pdf Family Brochure for KAX1, KAX2 and KAXW View
    Product Presentation Lithonia KAX Customer Presentation - May 2016.pdf KAX LED Family Training Presentation View
