L7XFR MVOLT
- Overview
- Specifications

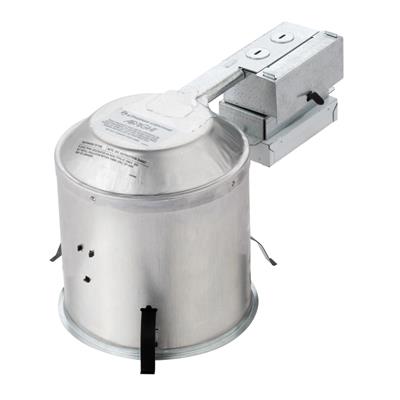

Recessed housing rated IC or Non-IC for 2x8 remodel applications. Approved for direct burial in insulation.
Construction
Air-tight aluminum housing with three remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Heavy-gauge galvanized steel raceway arm. Galvanized steel junction box with four built-in ROMEX® clamps and five 1/2" knockouts with slots for pryout. Not suitable for pulling wires.Rated for 90°C. Ground wire provided. Removable J-box door for easy access.
Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.
Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.
Suitable for ceilings up to 1-1/2" thick.
Electrical
Electronic 120V ballast with end of life protection. Class P thermally protected ballast protects against improper contact with insulation.
Socket base: 13W four-pin DTT (G24Q-1), TRT (GX24Q-1); 18W four-pin DTT (G24Q-2), TRT (GX24Q-2); 26W four-pin TRT (GX24Q-3).
Size | 6 IN |
Shape | Round |
Light Source | Compact Fluorescent |
Lumens | Not Applicable |
CCT / LED Color | 3000 K, 3500 K |
Product Type | Downlight |
Environmental Listing | IC, Non-IC |
Regulatory Listing | CSA, cUL, UL |
Dimming Protocol | 0-10V |
Voltage Rating | 120 |
Trim Style | Cone, Open |
Color | Clear |
Mounting Type | Recessed |
Series | L7XFR13D, L7XFR13T, L7XFR18D, L7XFR18T, L7XFR26T, L7XFR |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET 6" Compact Fluorescent Remodel Housing 6" Compact Fluorescent Remodel Housing 9/16/2014 View -
Photometry & Revit (BIM)
Use %(percent) to separate search terms.Description Report Design Tools {{photometryItem.Catalog}} Report CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Installation Instructions L7XR Installation Instruction Sheet Installation Instruction Sheet for L7XR, L7XFR, L7XPR, L5R, L3R, LV3R 11/7/2012 View Installation Instructions TOR Trim Instruction Sheet L7XFR13T Trim Installation Instruction Sheet 9/16/2014 View -
