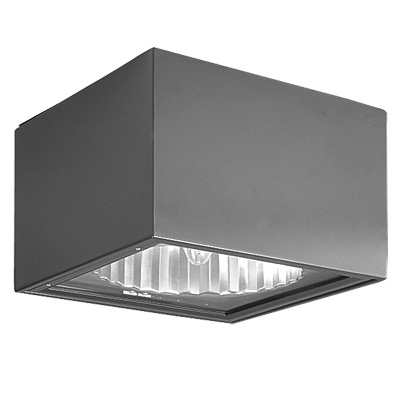

KPS

Surface-Mount Square

By Lithonia Lighting

  • Overview
  • Specifications

For parking garage applications.


Construction

Housing: Rugged, heavy-gauge aluminum housing. Square shape, continuous welded seams for weather-tight integrity.

Door Assembly: Extruded-aluminum doorframe has an impact-resistant, tempered glass lens. Doorframe is sealed to housing by EPDM closed-cell gasket.

Finish: Dark bronze (DDB) corrosion-resistant polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors. Stainless steel housing also available.

Optics

Reflectors are anodized, hydroformed aluminum. Four cutoff distributions available: Type II (roadway), Type III (asymmetric), Type IV (forward throw) and Type V (symmetric). Type V reflector is vertically lamped; all others horizontally lamped. Reflectors are field-interchangeable and hinge out for easy removal during installation/maintenance.

Electrical

Ballast: All ballasts are 100% factory tested. High reactance, high power factor for 150W and below. Constant wattage autotransformer 175W. MH: 150W and below are standard with pulse-start ignitor technology. CSA, NOM or INTL required for probe start shipments outside the U.S. for 175M. Electrical components are unitized on removable power module. Positive-locking, quick-disconnect on primary and secondary circuits.

Socket: Medium-base porcelain socket standard. Mogul-base porcelain socket for 175W metal halide. 4KV pulse rated.

Installation

Direct mounting to recessed J-box is standard; yoke or recessed mountings optional. Housing will accommodate both top and side branch-circuit wiring and has internal splice compartment.

Read More
Read Less
Shape Square
Light Source Not Applicable
Product Type Canopy
Regulatory Listing UL
Mounting Type Surface
Series KPS
