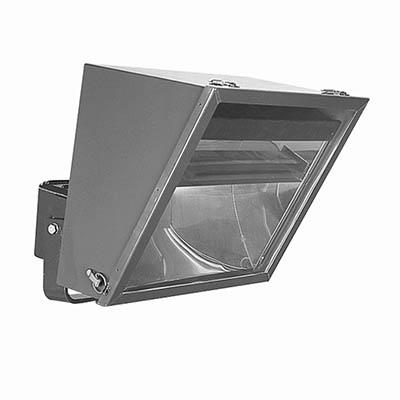

Product Image

170S

High Performance Floodlight HID Outdoor

By Lithonia Lighting

  • Overview
  • Specifications

For airport aprons or parking areas.


Construction

Housing: Rugged, heavy-gauge, aluminum housing. Continuous welded seams for weather-tight integrity. Aluminum door frame secured with four stainless steel latches. Thermal-resistant and shock-resistant tempered flat lens.

Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.

Optics

Anodized aluminum reflector with internal glare control louver, painted matte black to provide an asymmetrical beam pattern with sharp vertical cutoff.

Electrical

Electrical components mounted to heavy-gauge plate to maximize heat dissipation and structural integrity.

Ballast: All ballasts are 100% factory tested. Constant wattage autotransformer. Super CWA Pulse Start ballasts, 88% efficient and EISA legislation compliant, are required for 320-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S.

Socket: Horizontal, mogul-base porcelain socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W-600V, 4KV pulse rated.

Installation

Painted steel yoke, complete with vertical angle selector, retaining stop and 3-foot, 14/3 cable, is standard.

Read More
Read Less
Shape Rectangular
Product Type Floodlight
Regulatory Listing UL
Series 170S
