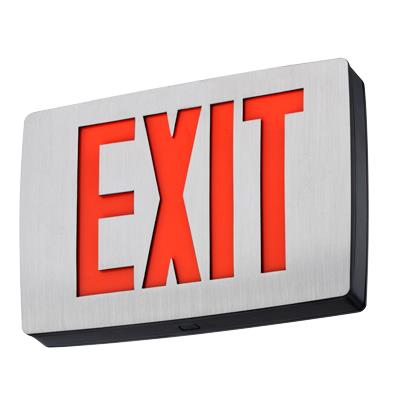

Product Image
72097_large

LQC

Quantum® LED Die-Cast Exit Sign

By Lithonia Lighting

  • Overview
  • Specifications

Ideal for applications requiring general-purpose emergency lighting exit sign.


Construction

Die-cast aluminum construction - compact housing. Brushed aluminum faceplate with matte black electrostatic polymeric trim. Clear lacquer finish on brushed face inhibits fingerprints and other surface contaminants. Also available in white housing and face.

Fully overlapping light seal prevents light leaks. Universal direction chevron knockouts are concealed and easily removed.

Provisions for conduit entry and pendant mounting.

U.S. Patent No. 5,739,639. Other patents pending.

The typical life of the exit LED lamp is 10years.

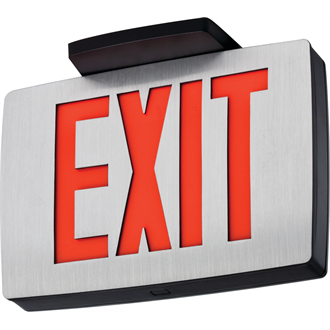

Universal (top, end or back) mounting. Completely concealed, easily removed mounting knockouts and hole plugs. No exposed hardware. Die-cast aluminum canopy provided. Faceplate accessory kit available for one-face to two-face field conversion.

Dual-voltage input capability 120 or 277 VAC. Emergency models provided with test-switch, status indicator and a battery that automatically recharges when normal power is restored.

Emergency models provided with maintenance-free, sealed nickel-cadmium battery to provide 90 minutes of emergency power if necessary.

Read More
Read Less
Shape Not Applicable
Light Source LED - Static
Lumens Not Applicable
Product Type Emergency Exit Sign
Regulatory Listing NFPA 101, UL
Fixture Wattage 3
Voltage Rating 120
Color White
Mounting Type Surface
Series LQC

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ELA-WG.pdf Wire guards 11/28/2022 View
    SPEC SHEET Exit Stem Kits Exit Stem Kits 10/14/2020 View
    SPEC SHEET lqc.pdf QUANTUM® LED die-cast 9/28/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions EMCSA00704_REV_D.pdf ELA USxx stem kit instruction sheet (Rev D, 4/2015) View
    Installation Instructions EMCSA00736 LQC_Rev C (2007) (emergency & standard operation) View
    Material Safety Data Sheet Topa Ni-Cd.pdf SDS: EX_LED, ECB_LED, LXNY, LXC, LQC, WLTE, TLE, EDG, EDGR, EDGNY, WLTU LED, EU2L, ECC, EU2 LED, N1L View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Life Safety Portfolio.pdf Life Safety Portfolio 10/6/2021 View
