4426 LED BM

4426 LED BM

LED & RGB Fountain and Reflecting Pool Fixture | Available in RGBW as a custom

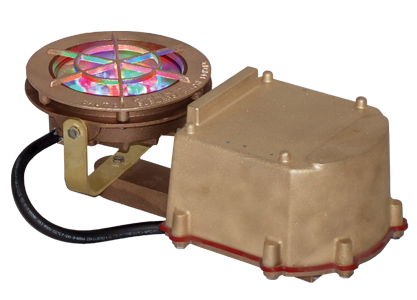

The 4426 44 and 86 watt LED Base Mount (BM) luminaire provides superior lumen maintenance and optimized energy performance for use in fountains, reflecting pools and illuminating waterfalls.

Available in Monochromatic LED and RGB LED array to create DMX controlled dynamic color.
Suitable for wet or dry application.

Read Less

Light Source	LED - Dynamic, LED - Static
Lumens	4300 LM
CCT / LED Color	2700 K, 3000 K, 4100 K, 5300 K, Amber Phosphor Corrected, Blue, Green, Red, RGB
CRI	70
Product Type	Underwater
Compliance Listing	BAA
Environmental Listing	IP68
Regulatory Listing	UL
Dimming Protocol	Forward Phase
Light Distribution	Flood, Horizontal Flood, Horizontal Spot, Medium Flood, Narrow Spot, Very Wide Flood, Wide Flood
Fixture Wattage	60, 96
Voltage Rating	120
Mounting Type	Base Mount
Series	4426

Read More Read Less

Spec Sheets

Document Type	Document Title	Description	Updated	View	Download	Email
SPEC SHEET	4426_LED_BM_WHITE	Base Mount White LED Fountain	4/19/2022	View	Download	Email
SPEC SHEET	4426_LED_RGB_BASE MOUNT.pdf	LED Base Mount Color Changing - Wet/Dry	4/19/2022	View	Download	Email

Photometry & Revit (BIM)

Search within... Use %(percent) to separate search terms.

Clear Filters

{{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

View Form Sizing

Description	Report	Design Tools	.ies	BIM

{{photometryItem.Catalog}}	Report	{{tool.Title}}	.ies	BIM

Prev
{{page}}
Next

CLICK HERE to start your request for a BIM Model or IES file.

Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

Document Type	Document Title	Description	Updated	View	Download	Email
Installation Instructions	4426 Underwater LED	4426 Underwater LED	11/8/2012	View	Download	Email
Installation Instructions	ABL General Warnings, Form No. 503.204	ABL General Warnings, Form No. 503.204	11/8/2012	View	Download	Email
Installation Instructions	ABL LED General Warnings, Form No. 503.203	ABL LED General Warnings, Form No. 503.203	11/8/2012	View	Download	Email

Utility Rebate Search
Replacement Parts
Confidential Documents

Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

Document Type	Document Title	Description	Updated	View	Download	Email
Catalogs	DMX Distribution Diagram	DMX Distribution Diagram	11/8/2012	View	Download	Email
Catalogs	LED Frequently Asked Questions	LED Frequently Asked Questions	11/8/2012	View	Download	Email
Catalogs	Monochromatic vs DMX Application Notes	Monochromatic vs DMX Application Notes	11/8/2012	View	Download	Email
Catalogs	Underwater Catalog	Underwater Catalog	11/8/2012	View	Download	Email
Sell Sheet	Hydrel RGB Sell Sheet.pdf	Hydrel RGB Sell Sheet	2/7/2017	View	Download	Email
