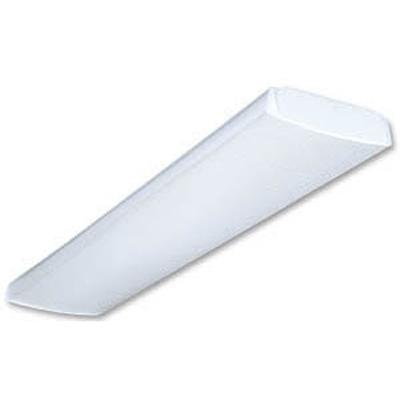

Product Image
105522_large

Traditional Wrap

Decorative Indoor Linear Design

By Lithonia Lighting

  • Overview
  • Specifications
For applications that require the clean appearance of a low-profile wraparound. Provides broad distribution of light for residential and light commercial applications.
Curved prismatic diffuser with linear side prisms minimize lamp image and provides high angle brightness control. Luminous end plates soften appearance for improved aesthetics. Metal parts are die formed from code-gauge steel. Prismatic diffuser is 100% acrylic with sonically welded luminous ends. Continuous side flanges on fixture body provide light trap and continuous diffuser support to prevent accidental opening and simplify maintenance. Requires (2) or (4) T8 straight tube fluorescent lamps (not included). Standard with 120 volt, 60Hz electronic ballast ensures on flickering and quiet operation without interfering with other electronics. Use with non-dimmable switches only. All mounting hardware included. Warranty - Guaranteed for two years against mechanical defects in manufacture.
Read More
Read Less
Size 2FT, 4FT
Shape Rectangular
Light Source Fluorescent
Product Type Wraparound
Regulatory Listing cUL
Fixture Wattage 17, 32
Voltage Rating 120
Color White
Mounting Type Surface, Suspended
Series LB

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Traditional Wraparound Traditional Wraparound 11/14/2022 View
