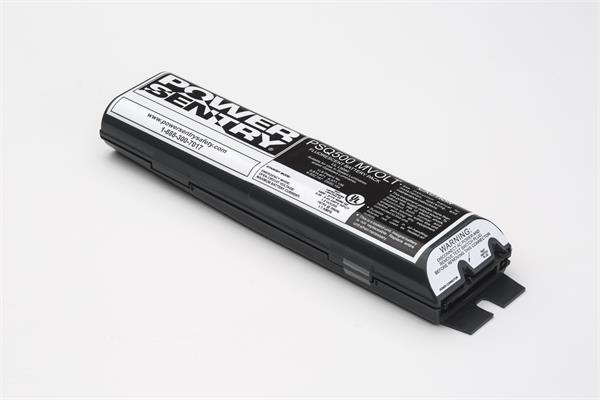

PSQ500QD MVOLT

Emergency Ballast

By Power Sentry

  • Overview
  • Specifications
Power Sentry batteries fit in the tightest of applications, including low-profile lensed troffers, downlighting and industrial lighting fixtures. They also feature an innovative Quick-Disconnect wiring harness that makes field maintenance and upgrades quick and easy.
Factory or field installed inside or outside (field only) fluorescent fixture to operate lamp(s) at reduced light output, providing optimum glare-freeillumination for a minimum of 90 minutes upon interruption of normal power.
  • Automatic battery recharge after 90-minute discharge.
  • Multi-voltage input capability (120V-277V)
  • Constant current-type charger
  • Sealed, maintenance-free, high-temperature nickel-cadmium battery
Read More
Read Less
Battery Run Time 90 min
Battery Recharge Time 24 hours
Max. Operating Temp. 50
Voltage Rating MVOLT
Regulatory Listing NFPA 101, UL
Product Type Emergency Ballast
Series PSQ500QD
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ELA-PSMK-PSMKSD-PSDMT-PSRME.pdf Emergency Driver Accessories (Remote mounting kit; Mounting Tray; Remote mounting enclosure) 2/2/2021 View
    SPEC SHEET ELA-RTS-TSPLP-PSTS-PSPRSB.pdf Inverter Accessories (remote test/switches and pilot) 4/29/2020 View
    SPEC SHEET PSQ500QD MVOLT Spec Sheet Emergency fluorescent battery pack View
  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions EMCSA00697 Rev B.pdf ELA TSPLP test switch/pilot light accessory - installation instruction sheet_Rev B, 10/2011 View
    Installation Instructions EMCSA00741_Rev C ELA PSPRSB (accessory test switch for Quick Disconnect) Instruction sheet, Rev C (1.27.11) View
    Installation Instructions Installation Instructions.pdf PS1400QD_PSQ500_PS600_PS300 MVOLT Installation Instructions View
    Material Safety Data Sheet Nicd-Sds.pdf MSDS for all Power Sentry NiCad brand battery packs View
