SLOT 2 Legacy Pendant, Surface, Wall

SLOT 2 legacy pendant, surface, and wall linear lighting solutions Limited Inventory

By Mark Architectural Lighting

    Tunable WhiteBuy America(n) Option Available
  • Overview
  • Specifications

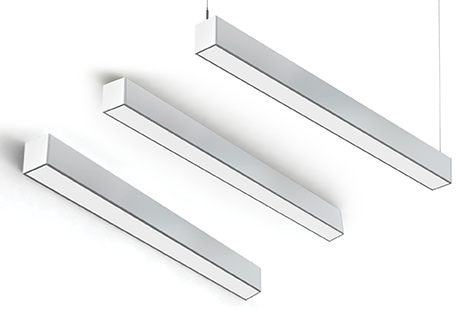

Combining a compact profile with unparalleled performance, Slot 2 creates simple lines of light. A choice of Indirect, Direct/Indirect and Direct distributions and a range of fixture lengths between 4 ft. and 8 ft. make the Slot 2 pendant a brilliant addition to designs for offices, lobbies, and hospitality or retail spaces. The Slot 2 pendant delivers up to 1000 lumens per foot direct and 1200 lumens per foot indirect, all at an exceptional color quality of up to 90 CRI. Available in Tunable White and Static White.
Read More
Read Less
Size 2FT, 3FT, 4FT, 5FT, 6FT, 7FT, 8FT, 12FT
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 350 LM, 400 LM, 450 LM, 500 LM, 550 LM, 600 LM, 650 LM, 700 LM, 750 LM, 800 LM, 850 LM, 900 LM, 950 LM, 1000 LM, 1050 LM, 1100 LM, 1150 LM, 1200 LM, 1250 LM, 1300 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Linear
Compliance Listing BAA, Declare
Environmental Listing Damp Location, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, DMX
Light Distribution Asymmetric indirect, Batwing, Wall Graze, Wall Wash
Mounting Type Pendant, Surface
Fixture Wattage 14.4, 14.8, 17.1, 22.4, 22.5, 22.6, 30.5, 30.6, 31.9, 35.6, 36.9, 37.1, 37.2, 38.7, 39.7, 43, 43.7, 45, 45.3, 46.8, 47.6, 49.4, 51, 52, 53, 54, 58, 59, 60, 61, 66, 67, 68, 72, 74
Voltage Rating 120, 120-277, 277, 347
Series S2LWI, S2LWD, S2LS, S2LWIP, S2LWIDP, S2LWDP, S2LSP, S2LWID, S2LI, S2LID, S2LD, S2LIP, S2LIDP, S2LDP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET S2LD Pendant.pdf Slot 2 PSW LED Pendant Direct 3/1/2022 View
    SPEC SHEET S2LD TUWH PENDANT.pdf Slot 2 PSW LED Pendant Direct Tunable White 1/12/2022 View
    SPEC SHEET S2LI Pendant.pdf Slot 2 PSW LED Pendant Indirect 1/12/2022 View
    SPEC SHEET S2LI TUWH PENDANT.pdf Slot 2 PSW LED Pendant Indirect Tunable White 1/12/2022 View
    SPEC SHEET S2LID Pendant.pdf Slot 2 PSW LED Pendant Indirect/Direct 3/1/2022 View
    SPEC SHEET S2LID TUWH PENDANT.pdf Slot 2 PSW LED Pendant Indirect/Direct Tunable White 3/3/2022 View
    SPEC SHEET S2LS TUWH SURFACE.pdf Slot 2 PSW LED Surface Direct Tunable White 1/5/2022 View
    SPEC SHEET S2LWD TUWH WALL.pdf Slot 2 PSW LED Wall Direct Tunable White 1/13/2022 View
    SPEC SHEET S2LWD Wall.pdf Slot 2 PSW LED Wall Direct 1/13/2022 View
    SPEC SHEET S2LWI TUWH WALL.pdf Slot 2 PSW LED Wall Indirect Tunable White 1/13/2022 View
    SPEC SHEET S2LWI Wall.pdf Slot 2 PSW LED Wall Indirect 1/13/2022 View
    SPEC SHEET S2LWID TUWH WALL.pdf Slot 2 PSW LED Wall Indirect/Direct Tunable White 1/13/2022 View
    SPEC SHEET S2LWID Wall.pdf Slot 2 PSW LED Wall Indirect/Direct 1/13/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot2_4_PSW_35K_80CRI.pdf Slot 2/4 PSW 35K 80CRI 6/23/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot2_4_PSW_35K_90CRI.pdf Slot 2/4 PSW 35K 90CRI 6/23/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot2_4_PSW_40K_80CRI.pdf Slot 2/4 PSW 40K 80CRI 6/28/2022 View
  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions INSTALL INSTRUCTIONS BIDIRECT PENDANT.pdf Slot PSW BIDIRECT PENDANT (S2LID, S4LID) 2/22/2022 View
    Installation Instructions INSTALL INSTRUCTIONS DIRECT PENDANT.pdf Slot PSW DIRECT PENDANT (S2LD, S4LD) 2/22/2022 View
    Installation Instructions INSTALL INSTRUCTIONS DIRECT WALL.pdf Slot PSW DIRECT WALL (S2LWD, S4LWD) 2/22/2022 View
    Installation Instructions INSTALL INSTRUCTIONS INDIRECT PENDANT.pdf Slot PSW INDIRECT PENDANT (S2LI, S4LI) 2/22/2022 View
    Installation Instructions INSTALL INSTRUCTIONS INDIRECT WALL.pdf Slot PSW INDIRECT WALL (S2LWI, S4LWI) 2/22/2022 View
    Installation Instructions install-instructions-bidirect-wall.pdf Slot PSW INDIRECT/DIRECT WALL (S2LWID, S4LWID) 2/22/2022 View
    Installation Instructions install-instructions-direct-surface.pdf Slot PSW DIRECT SURFACE (S2LS, S4LS) 2/22/2022 View
    Installation Instructions NLIGHT_Air_Installation.pdf nLight Air 3/22/2021 View
    Technical Bulletins NL_1008400_nLight Wired Architectural Ambient Tech Guide_0122_002.pdf nLight Wired Linear Technical Guide 2/3/2022 View
    Technical Bulletins NLTAIR2 Architectural Ambient Tech Guide.pdf NLTAIR2 Linear Technical Guide 1/27/2020 View
