Contractor Select (1-2 Days) new_banner
Product Image
JPDZ5 DB WWH JPDZRMJBX.jpg
JUN_934550_Podz Product Page Image_1021.jpg

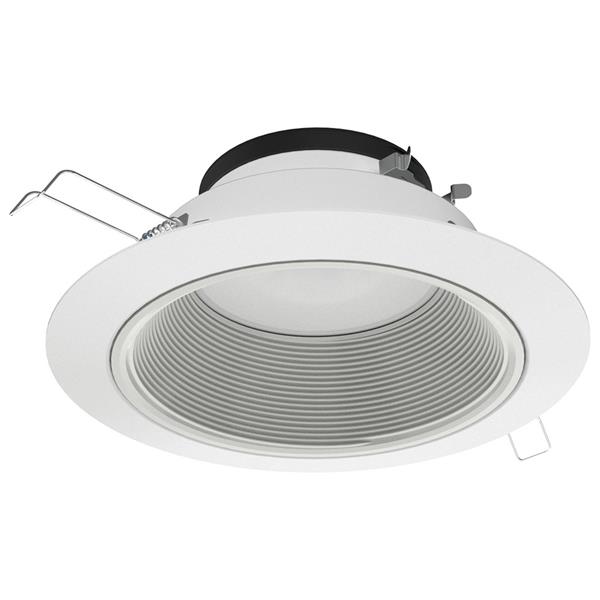

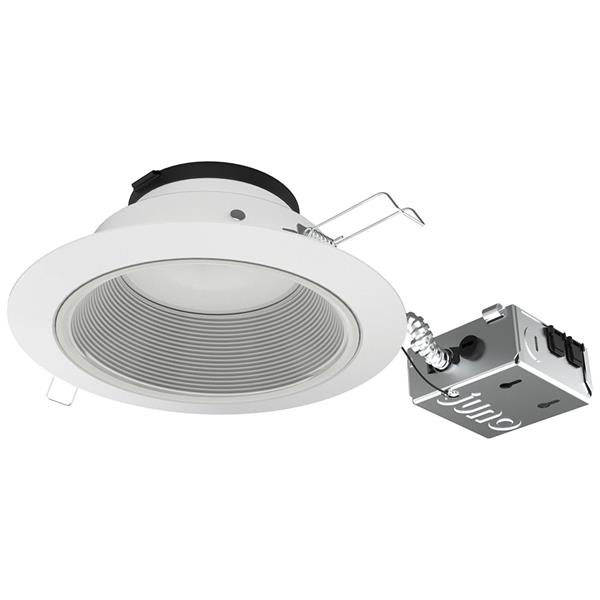

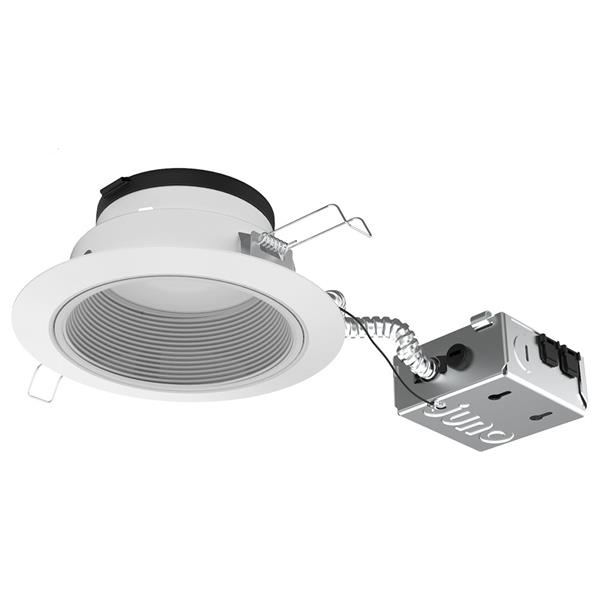

Contractor Select Podz™ Series Canless Downlights

4" and 6" - Round, Canless Downlights for remodel installations

By Juno

    WarmDimSwitchable LumensSwitchable CCTsEnergy Star®CA Title 24/JA8
  • Overview
  • Specifications
With Contractor Select™ Juno® Podz 4-inch and 6-inch LED canless downlights, ordering, stocking, and installing is easier than ever before as the trim and remodel junction box are packaged altogether in one single carton. Juno Podz™ combines a low profile, IC rated mechanical form of less than 3” tall with the appearance of a deeply regressed downlight that installs directly into the plenum, eliminating the need for a traditional recessed housing. Additionally, the Podz LED downlights allow for flexibility in lumen and color temperatures by providing switches directly on the fixture to toggle between 700 lumens, 1000 lumens or 1200 lumens and 27K, 30K, 35K, 40K or 50K color temperature options, including a WarmDim® (2850K-1900K) feature that provides the warmth and ambiance of traditional incandescent light sources. The dimmable LED light engine features cutting-edge color mixing technology which delivers exceptional color rendering at all LED color temperatures and is offered in 120-volt.
Read More
Read Less
Size 4 IN, 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Switchable White, Warm Dimming
Lumens 700 LM, 1000 LM, 1200 LM, Switchable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 90
Product Type Downlight
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Air Loc, IC, Wet Location
Regulatory Listing C-UL-US
Dimming Protocol Forward Phase, Reverse Phase
Trim Style Baffle, Bevel
Color White
Mounting Type Recessed
Voltage Rating 120, 120-277
Fixture Wattage 15
Series JPDZ4, JPDZ6, JPDZ4JB, JPDZ6JB
Days To Ship 2 or Less

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Contractor Select JPDZ Series.pdf Contractor Select 4" and 6" - Round, Canless Downlights for remodel installations 1/13/2022 View

    This tool will configure catalog # options that may not be a part of our quick shipment programs (Contractor Select, LightQuick, Design2Ship, etc.).
    Please see the specification sheet for the quick ship catalog # configurations.

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P4849.pdf Juno Podz Installation Instructions 10/14/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Podz Family Brochure.pdf 4", 5" and 6" Podz Family Brochure 4/6/2022 View
    Sell Sheet Contractor Select Podz Sell Sheet_1221pdf.pdf Contractor Select Podz Sell Sheet 1/18/2022 View
    Sell Sheet Juno Podz Contractor Brochure Juno Podz Contractor Brochure 1/5/2022 View
