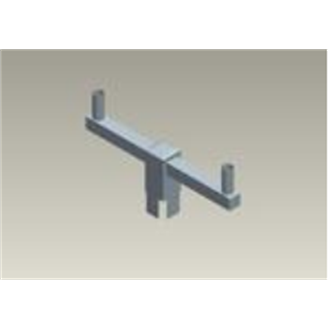

BR Aluminum Vertical Arms

Non-Decorative Commercial Arms & Brackets
  • Overview
  • Specifications
Read More
Read Less
Product Type Arm
Arm Mounting Type HUB, Tenon
Mounting Type Post Top
Primary Material Aluminum
Architectural Style Utility
Series BR1076, BR1077, BR1078, BR1079, BR1080, BR1081, BR1082, BR1083, BR1084, BR898, BR899, BR900, BR901, BR902, BR904, BR905, BR906, BR907, BR908, BR909, BR912, BR913, BR944, BR945, BR946, BR947

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet BR Aluminum Vertical Arms.pdf BR Aluminum Vertical Arms 11/11/2024 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets Pole Arm Selection Guide.xlsx Arms & Brackets Selection Guide 1/12/2021

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD BR1084.dwg 2D DWG Aluminum bullhorn 3/29/2023
    CAD BR900.dwg 2D DWG Aluminum bullhorn 2U Brackets 3/28/2023
    Holophane DWGs BR1076.pdf BR1076 Aluminum bullhorn 2@180inline brkt 2-3/8IN ODX6IN tn 18-1/2IN spacing, 5IN SSA Pole .188 wall 4/22/2024 View
    Holophane DWGs BR1077.pdf BR1077 Aluminum bullhorn 2@180inline brkt 2-3/8IN ODX6IN tall tn,19IN spacing, 6IN SSA .188IN wall 4/22/2024 View
    Holophane DWGs BR1078.pdf BR1078 Aluminum bullhorn 2@180inline brkt 2-3/8IN ODX6IN tall tn,19IN spacing, 6IN SSA .250IN wall 4/22/2024 View
    Holophane DWGs BR1079.pdf BR1079 Aluminum bullhorn 3 inline brkt 2-3/8IN OD X 6IN tall tn 30-1/2IN spacing, 5IN SSA .188 wall 4/22/2024 View
    Holophane DWGs BR1080.pdf BR1080 Aluminum bullhorn 3 inline brkt 2-3/8IN OD X 6IN tall tn,31IN spacing, 6IN SSA Pole .188 wall 4/22/2024 View
    Holophane DWGs BR1081.pdf BR1081 Aluminum bullhorn 3 inline brkt 2-3/8IN ODX6IN tall tn,31IN spacing.6IN SSA pole .250 wall 4/22/2024 View
    Holophane DWGs BR1082.pdf BR1082 Aluminum bullhorn 4 inline brkt 2-3/8IN OD X 6IN tall tn hub fits 5IN SSA Pole .188IN wall 4/22/2024 View
    Holophane DWGs BR1083.pdf BR1083 Aluminum bullhorn 4 inline brkt 2-3/8IN OD x 6IN tall tn hub fits 6IN SSA Pole .188IN wall 4/22/2024 View
    Holophane DWGs BR1084.pdf BR1084 Aluminum bullhorn 4 inline brkt 2-3/8IN OD x 6IN tall tn hub fits 6IN SSA Pole .250IN wall 4/22/2024 View
    Holophane DWGs BR898.pdf BR898 Aluminum bullhorn 2U brkt 2@180, 2-3/8IN ODX16IN tall tenon,36IN space, for 4.0IN RTA Pole top 4/22/2024 View
    Holophane DWGs BR899.pdf BR899 Aluminum bullhorn 2U brkt 2@180, 2-3/8IN ODX16IN tall tenon,36IN space, for 4.5IN RTA Pole top 4/22/2024 View
    Holophane DWGs BR900.pdf BR900 Aluminum bullhorn 2U brkt 2@180, 2-3/8IN ODX16IN tall tenon,36IN space, for 6.0IN RTA Pole top 4/22/2024 View
    Holophane DWGs BR901.pdf BR901 Aluminum bullhorn 3U brkt 3@120 2-3/8IN ODX16IN tall tenon,vert, hub fits 4.0IN RTA pole top 4/22/2024 View
    Holophane DWGs BR902.pdf BR902 Aluminum bullhorn 3U brkt 3@120 2-3/8IN ODX16IN tall tenon,vert, hub fits 4.5IN RTA pole top 4/22/2024 View
    Holophane DWGs BR903.pdf BR903 Aluminum bullhorn 3U brkt 3@120 2-3/8IN ODX16IN tall tenon,vert, hub fits 6.0 IN RTA pole top 4/22/2024 View
    Holophane DWGs BR904.pdf BR904 Aluminum bullhorn 3 inline brkt,2-3/8IN ODX16IN tn,vert 30IN spacing hub 4.0IN OD RTA pole top 4/22/2024 View
    Holophane DWGs BR905.pdf BR905 Aluminum bullhorn 3 inline brkt,2-3/8IN ODX16IN tn,vert 30IN spacing hub 4.5IN OD RTA pole top 4/22/2024 View
    Holophane DWGs BR906.pdf BR906 Aluminum bullhorn 3 inline brkt,2-3/8IN ODX16IN tn,vert 30IN spacing hub 6.0IN OD RTA pole top 4/22/2024 View
    Holophane DWGs BR907.pdf BR907 Aluminum bullhorn 4U 4@90 brkt 2-3/8IN ODX16IN tenons 24IN spacing fits 4.0 OD RTA pole top 4/22/2024 View
    Holophane DWGs BR908.pdf BR908 Aluminum bullhorn 4U 4@90 brkt 2-3/8IN ODX16IN tenons 24IN spacing fits 4.5 OD RTA pole top 4/22/2024 View
    Holophane DWGs BR909.pdf BR909 Aluminum bullhorn 4U 4@90 brkt 2-3/8IN ODX16IN tenons 24IN spacing fits 6.0 OD RTA pole top 4/22/2024 View
    Holophane DWGs BR912.pdf BR912 Aluminum bullhorn 4 inline brkt 2-3/8IN ODX13.62IN tn,vert mt,hub fits 4.5 RTA pole top 4/22/2024 View
    Holophane DWGs BR913.pdf BR913 Aluminum bullhorn 4 inline brkt 2-3/8IN ODX13.62IN tn,vert mt hub fits 6.0 RTA pole top 4/22/2024 View
    Holophane DWGs BR944.pdf BR944 Aluminum bullhorn 2U brkt 2@180 2-3/8IN ODX16IN tall tn 36 inch spacing hub fits 3.0 OD RTA 4/22/2024 View
    Holophane DWGs BR945.pdf BR945 Aluminum bullhorn 4 inline brkt,2-3/8IN ODX13.62IN tn,vert mt fixture, hub 4.0 OD RTA pole top 4/22/2024 View
    Holophane DWGs BR946.pdf BR946 Aluminum bullhorn 4 inline brkt,2-3/8IN ODX13.62IN tn,vert mt fixture, hub 4.5 OD RTA pole top 4/22/2024 View
    Holophane DWGs BR947.pdf BR947 Aluminum bullhorn 4 inline brkt,2-3/8IN ODX13.62IN tn,vert mt fixture, hub 6.0 OD RTA pole top 4/22/2024 View
