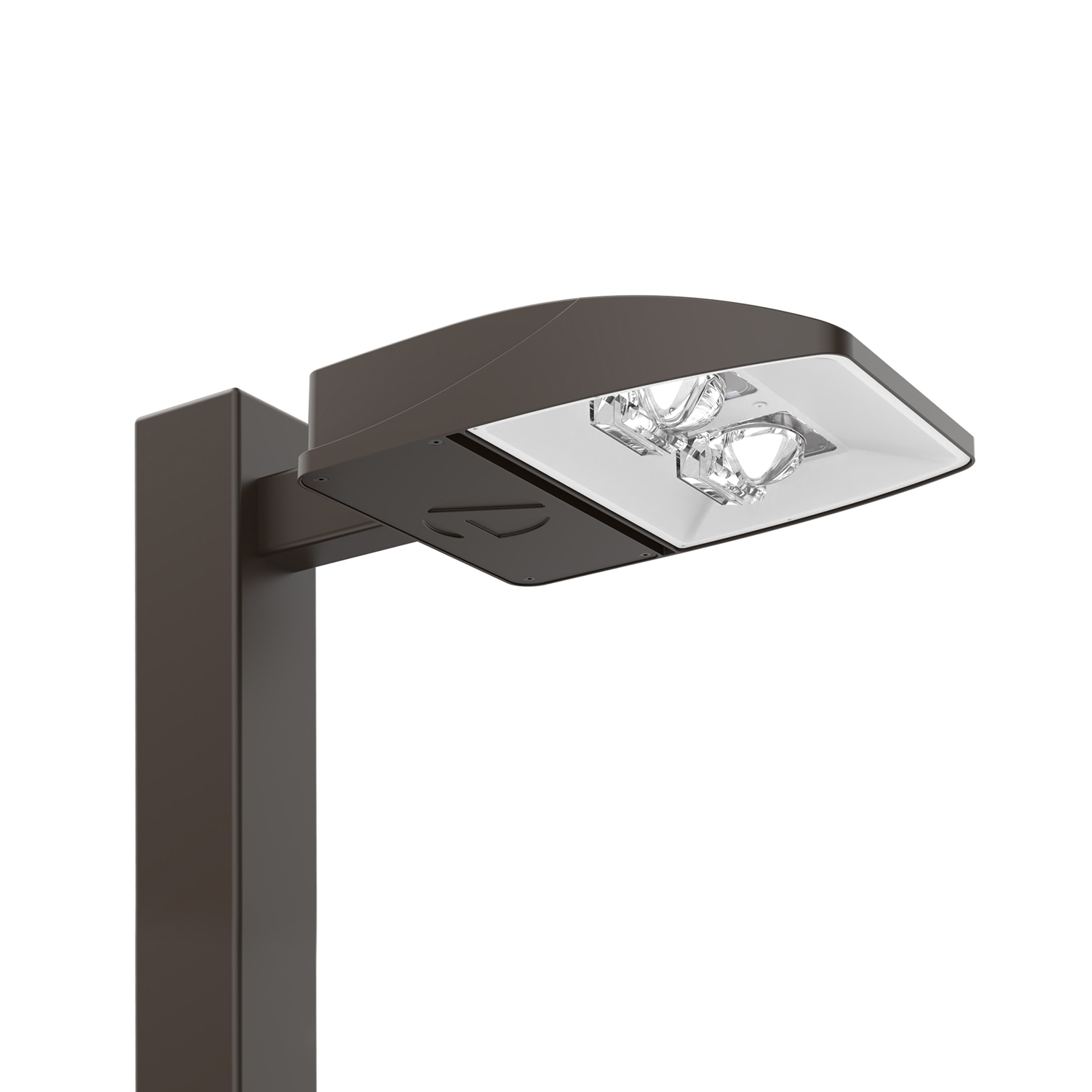

Contractor Select ESX LED Area Luminaire

Most popular and readily available ESX LED area luminaire configurations for your everyday lighting needs

By Lithonia Lighting

    DLC Premium
  • Overview
  • Specifications
When your project calls for low initial cost and high energy savings, the Lithonia Lighting® ESX1 LED area luminaire delivers. ESX1 is ideal for one-for-one replacement of HID area lighting and provides up to 76% energy savings, long service life and fast payback.

The ESX1 delivers 8,000 to 25,000 lumens allowing it to replace 150W to 400W HID luminaires. All ESX luminaires feature adjustable light output, providing two light levels from one product, allowing greater flexibility while helping reduce inventory costs.

All luminaires feature a reversible arm that allows for mounting on both round and square poles. Eight configurations of ESX1 luminaires are stocked in Acuity Brands distribution centers. The ESX1 offers a complete area lighting package and provides the combination of best product value, best price, and best delivery.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 8000 LM, 14,000 LM, 21,000 LM, 25,000 LM
CCT / LED Color 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing DLC Premium, Nighttime Friendly
Environmental Listing IP66, Wet Location
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Fixture Wattage 100, 200
Voltage Rating HVOLT, MVOLT
Color Bronze
Mounting Type Arm Mount, Surface
Series ESX1
Days To Ship 2 or Less

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET CONTRACTOR SELECT ESX1 LED.pdf CS ESX1 LED Specification Sheet 1/17/2023 View

    This tool will configure catalog # options that may not be a part of our quick shipment programs (Contractor Select, LightQuick, Design2Ship, etc.).
    Please see the specification sheet for the quick ship catalog # configurations.

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions INST SHT ESX WBA 2020 912-00197-001 REV A_121520.pdf ESX1 LED WBA Installation instructions 1/5/2021 View
    Installation Instructions Instruction Sheet_ESX1_111820.pdf ESX1 LED Installation instructions 1/5/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Outdoor Discretionary Stock Solutions Brochure.pdf LL Outdoor Stock Solutions Guide 9/20/2021 View
    Product Presentation ESX1 LED Area - Customer Training Presentation - Jan 2021.pdf ESX1 LED Customer Presentation 2/16/2021 View
    Sell Sheet ESX LED Contractor Sell Sheet ESX LED Contractor Sell Sheet 4/22/2021 View
    Sell Sheet ESX LED Sell Sheet 0120.pdf ESX1 LED Sell Sheet 2/4/2021 View
