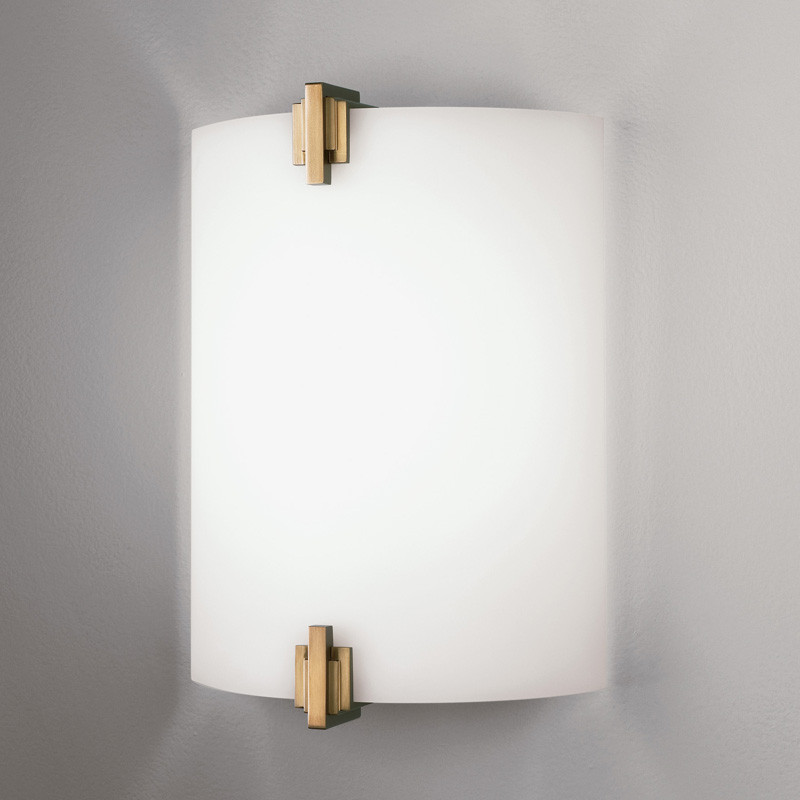

HPSR Wall Sconce

Patient Room and Common Area Decorative Wall Sconce

By Healthcare Lighting

    BAA
  • Overview
  • Specifications
This product is a direct replacement for the former Winona WFW4602 Gordon, WFW4612 Bohton, WFW4614 Triad, WFW4615 Tenor and WFW4616 Silhoeutte. The HPSR wall sconces for healthcare common areas, patient rooms and cafeterias are constructed with an etched opal acrylic diffuser. ADA-compliant, the HPSR wall sconces are vailable in 3000K, 3500K and 4000K color temperatures, nLight wired controls and assorted finishes.
Read More
Read Less
Light Source LED - Static
Lumens 500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Sconce
Compliance Listing BAA
Regulatory Listing UL
Dimming Protocol 0-10V
Fixture Wattage 17
Voltage Rating 120-277
Mounting Type Surface
Series HPSR

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HPSR.pdf Tenor Wall Sconce HPSR 3/19/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions I-HPSR.pdf HPSR 11" Length Decorative Wall Mount 10/18/2021 View
