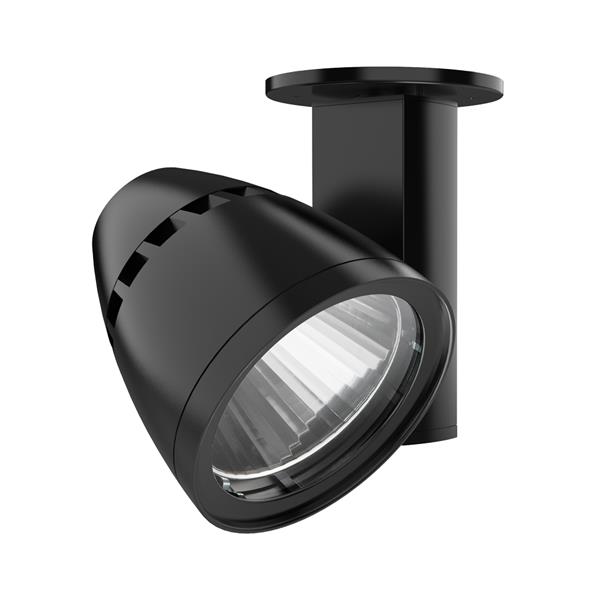

T265L CPY Canopy Mount Fixture

Trac-Master® Conix® II LED Trac Head with Direct Canopy Mount Option
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Specifications
The sleek, sculpted aesthetic of the Juno® T265L Series Conix® II LED fixture with Canopy Mount option is unrivaled in the industry and offers a fresh, contemporary appeal. These Conix II LED fixtures feature integral reflectors that offer uniform spot, narrow flood, and flood distributions. They can deliver up to 3,800 lumens while consuming less than 1/3 of the energy of halogen equivalents. These fixtures can be mounted on horizontal surfaces (ceilings) or vertical surfaces (walls) or any orientation in between. Ideally suited to help with energy code compliance, the CPY option also enables 120V, 277V, or 347V operation and enables phase or 0-10V dimming.
Read More
Read Less
Shape Cylinder
Light Source LED - Static
Lumens 3400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Environmental Listing Damp Location, Dry Location
Regulatory Listing C-UL-US, cUL, UL
Dimming Protocol 0-10V, Electronic Low Voltage, Forward Phase, Incandescent, Magnetic Low Voltage, Reverse Phase
Color Black, White
Mounting Type Surface, Track/Monopoint
Voltage Rating 120-277, 347
Fixture Wattage 36
Track Mounting Adapter CANOPY
Series T265L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Juno-Trac Master-T265L-G3.pdf T265L G3 Trac-Master® 36W Conix II LED 10/14/2024 View
    Spec Sheet Juno-Trac Master-T265L-G3-DIM.pdf T265L G3 Trac-Master® 36W Conix II LED Dimming Compatibility 8/8/2025 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions deep canopy install instructions_rev 3.1 - French.pdf Installation Instructions for Deep Canopy Mounting Option - French 5/29/2024 View
    Installation Instructions deep canopy install instructions_rev 3.1 - Spanish.pdf Installation Instructions for Deep Canopy Mounting Option - Spanish 5/29/2024 View
    Installation Instructions deep canopy install instructions_rev 3.1.pdf Installation Instructions for Deep Canopy Mounting Option 5/8/2024 View
    Installation Instructions slim canopy install instructions_rev 3.1 - French.pdf Installation Instructions for Slim Canopy Mounting Option - French 6/4/2024 View
    Installation Instructions slim canopy install instructions_rev 3.1 - Spanish.pdf Installation Instructions for Slim Canopy Mounting Option - Spanish 6/4/2024 View
    Installation Instructions slim canopy install instructions_rev 3.1.pdf Installation Instructions for Slim Canopy Mounting Option 5/8/2024 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Sell Sheet JUN_Direct Canopy Mount Option Sell Sheet.pdf Juno Trac Direct Canopy Mount Option Sell Sheet 9/25/2024 View
