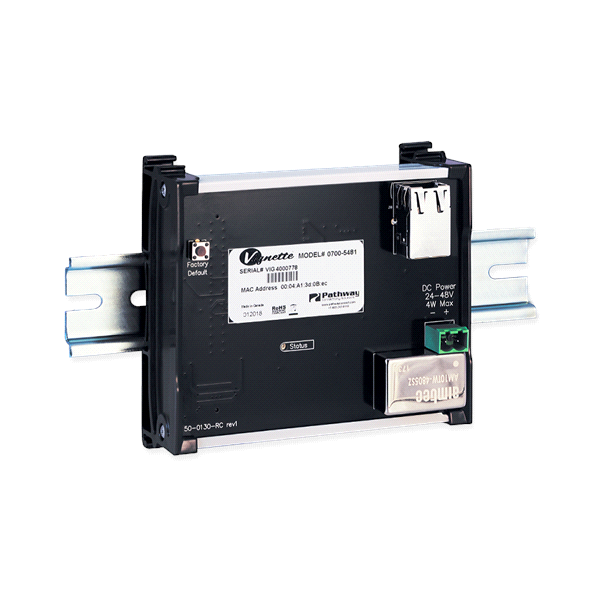

Vignette™ Snapshot and Zone Controller Time Clock
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Specifications
Vignette™ Clock is a powerful expansion device for Vignette systems, allowing you to automate playback of snapshots, zones, and other Vignette functions based on date, time, or astronomical events such as dawn, dusk, sunrise or sunset. Extensive configuration options in the free Pathscape software allow fine-tuning of the desired playback events. Set up schedules for each day, and select different looks for mornings, afternoons or evenings; on weekdays or weekends. Comprehensive scheduling for specific dates and date ranges. Input the local timezone and geographical location for accurate astronomical event timing, without having to make any additional adjustments.
Read More
Read Less
Control Device Type Gateway
Mounting Location Cabinet, Wall
Mounting Type DIN Rail, Surface
Product Type Gateway
Networkable Control Yes
Voltage Rating 24-48VDC
# of Comm. Ports 4
Receiving Protocol Ethernet
Series PWGW
