LV3R
- Overview
- Specifications
Recessed incandescent housings for 2x6 remodel construction. Approved for all ceiling and wiring types.
Construction

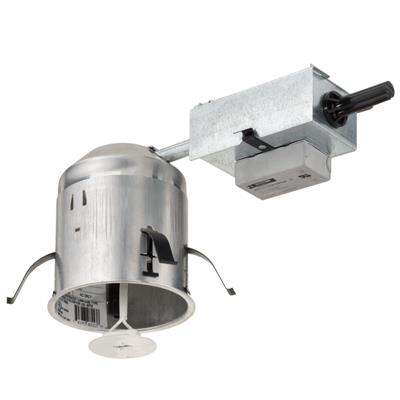

LV3R: Air-tight aluminum housing with heavy-gauge galvanized steel raceway arm. Remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Galvanized steel junction box with three built-in ROMEX® clamps and ground wire. Not suitable for pulling wires. Rated for 90°C.
Trims: 30° vertical tilt standard (except 3VS1 pinhole trim).
Electrical
Two-pin porcelain socket with heat shield.
Thermal protection provided against improper insulation usage. Electronic step-down transformer is standard for 120V or 277V. The minimum starting temperature is 0° F, -18°C with short-circuit protection and meets ANSI/IEEE C62.41 Cat. A transient protection.
Size | 4 IN |
Shape | Round |
Light Source | Halogen |
Product Type | Housing |
Environmental Listing | Damp Location, IC, Non-IC |
Regulatory Listing | cUL, UL |
Voltage Rating | 120, 277, 347, Not Applicable |
Trim Style | Adjustable, Cone, Eyeball, Eyelid Wallwash, Open |
Color | Silver, White |
Mounting Type | Recessed |
Series | LV3R |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET 4" Low Voltage Remodel Housing 4" Low Voltage Remodel Housing 10/7/2014 View -
Photometry & Revit (BIM)
Use %(percent) to separate search terms.Description Report Design Tools {{photometryItem.Catalog}} Report CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Installation Instructions L7XR Installation Instruction Sheet Installation Instruction Sheet for L7XR, L7XFR, L7XPR, L5R, L3R, LV3R 11/7/2012 View -
