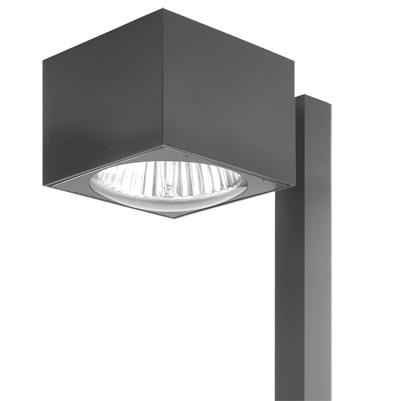

Product Image
1285_large

KVS

Square Aluminum Area HID Outdoor

By Lithonia Lighting

  • Overview
  • Specifications

For lighting shopping center or stadium parking lots.


Construction

Housing: Rugged, heavy-gauge, aluminum housing. Square shape, continuously welded seams for weather-tight integrity. EPDM closed-cell housing gasket.

Door Frame: Extruded aluminum hinged door frame. All exposed hardware is stainless steel.

Finish: Dark bronze corrosion-resistant polyester powder finish (DDB) standard; other arch colors available.

Optics

One-piece, anodized, hydroformed aluminum reflector. Four cutoff distributions available: R2 (roadway), R3 (asymmetric), R4 (forward throw) and R5 (symmetric). Reflectors hinge out for easy removal during installation/maintenance. R5 is vertically lamped; R2, R3, and R4 are horizontally lamped.

Nighttime Friendly™ - Square vertical lamp, 2 housing sizes, drop lens, 1000W max. House-side shield available in R3, R4 and R5 only.

Lens: Impact-resistant flat glass is standard for KVS1, R2, R3 and R4. Convex glass lens is standard with all KVS3 and KVS1 R5.

Electrical

150W and below high reactance high power factor ballast. Constant-wattage autotransformer ballasts are copper wound and 100% factory tested. Removable, unitized power module and positive-locking disconnect plugs.

Socket: Mogul-base porcelain socket (100M and 150M are medium-base) with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W-600V. 4KV pulse rated. (1000S is 5KV pulse rated.)

Installation

Mounting: Extruded 9" (KVS1) and 12" (KVS3) arms with integral splice compartment for wall or pole mounting. Optional mounting available.

Read More
Read Less
Shape Square
Product Type Area Light
Regulatory Listing UL
Mounting Type Not Applicable
Series KVS1, KVS3
