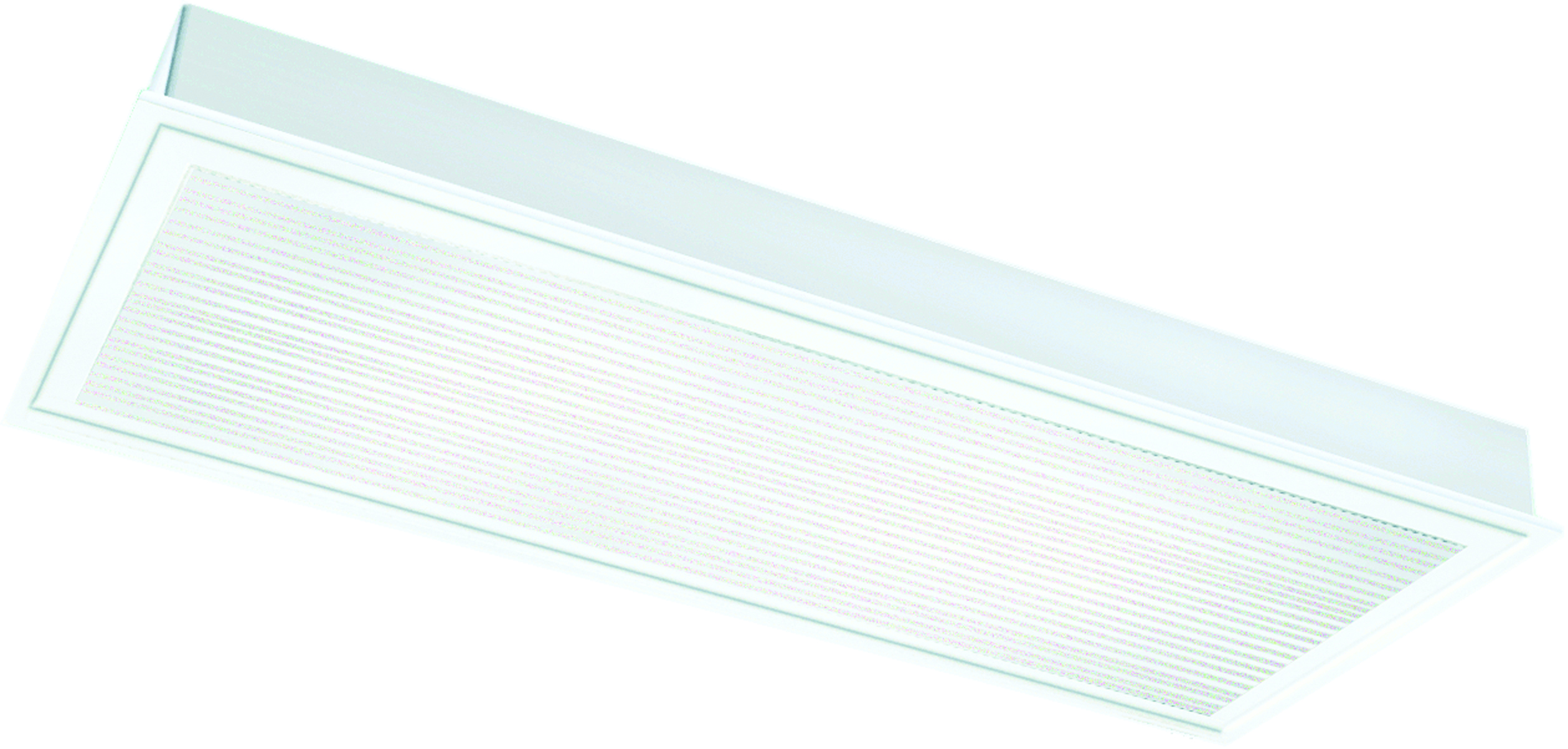

HST LED

Surgical Suite--Recessed Lighting

By Healthcare Lighting

    Buy America(n)
  • Overview
  • Specifications
The HST LED provides an energy efficient alternative to fluorescent surgical troffers. Surgical troffers are designed to supplement the primary procedure lighting in the surgical theater. When grouped to surround the perimeter of the operating table, The symmetric/asymmetric lens distributes light both downward and toward the surgical field, diminishing shadows and reducing eyestrain of the surgical team. A gasketed steel door with clean concealed hinge seals plenum contaminates from the surgical suite. For row-mounted flange applications, linking connectors are offered or end flanges maybe conveniently removed to allow fixtures to be fastened to one another.
  • Sealed door with clean concealed hinge is superior alternative to conventional piano hinge
  • Integral grounding grid shields sensitive medical equipment from radiated electromagnetic emissions
  • Each circuit includes a radio frequency suppressor to shield sensitive medical equipment from conducted emissions
  • Multiple circuit and lamping configurations are available
  • Available with dimming and emergency (options)
  • Entirely serviceable from within the room
Read More
Read Less
Size 2x2, 2x4
Light Source LED - Static
Lumens 7800 LM, 17,300 LM
CCT / LED Color 3500 K, 4000 K, 5000 K
Product Type Troffer
Compliance Listing BAA
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 186, 97
Voltage Rating 120, 120-277, 277
Mounting Type Recessed
Series HSTLED22, HSTLED24

Read More Read Less
