Wayfinder HNLM4

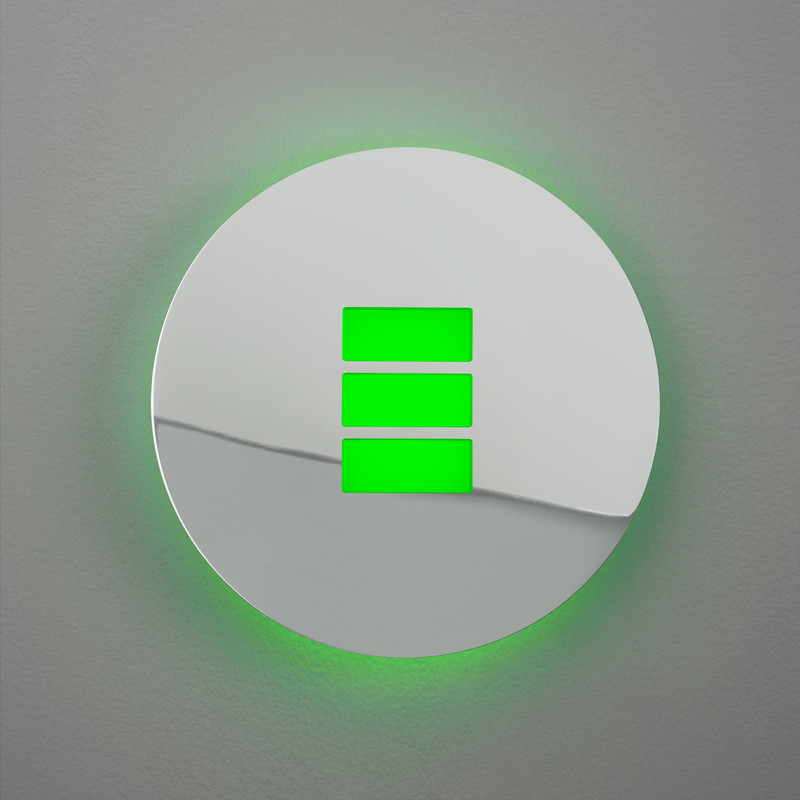

Healthcare Wayfinder or Directional Marker with Perimeter Illumination and a Square Junction Box

By Healthcare Lighting

    Buy America(n)
  • Overview
  • Specifications
This product is a direct replacement for the former Winona Marker04. The Wayfinder HNLM4 is a luminaire that provides low-level illumination in healthcare settings. Wayfinder HNLM4 mounts to Steel City 72171 box. Constructed with a solid aluminum, brass or stainless steel faceplate with a solid opal acrylic lens, Wayfinder HNLM4 is available in amber, blue, cyan, green, red-orange, red and static white colors, and assorted finishes. Faceplates are available in round and square shapes.
Read More
Read Less
Light Source LED - Static
Lumens 45 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 6400 K, Amber Phosphor Corrected, Blue, Green, Red
Product Type Step Light
Compliance Listing BAA
Environmental Listing Dry Location, Wet Location
Regulatory Listing ETL
Dimming Protocol 0-10V
Fixture Wattage 3
Voltage Rating 120-277
Mounting Type Semi-recessed
Series HNLM4

Read More Read Less
